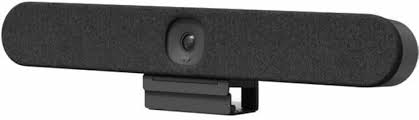

LOGITECH RALLY BAR HUDDLE

ALL-IN-ONE VIDEO BAR FOR HUDDLE AND SMALL ROOMS

• Designed to deliver video meetings with ease, Rally Bar Huddle isquick to set up in person or remotely, simple to manage, and easy to integrate with your existing video conferencing solutions through CollabOS.

• Rally Bar Huddle works with most platforms you use to connect hybrid teams, ensuring an effortless experience from the home to the office, and everywhere in between.

• Combine Rally Bar Huddle with Tap IP and Tap Scheduler to make it easy to schedule, join, and participate in video meetings.

PRODUCT FEATURES

EVERYONE IS SEEN AND HEARD CLEARLY

• AI video intelligence, advanced sound pickup, noise suppression, and ongoing software improvements provide a clear and natural meeting experience for remote workers

WORKS WITH LEADING VIDEO PLATFORMS

• Rally Bar Huddle works with most platforms you use tornconnect hybrid teams, ensuring an effortless experiencernfrom the home to the office, and everywhere in between.

QUICK TO SET UP, EASY TO MANAGE

• Designed to deliver video meetings with ease, Rally Bar Huddle is quick to set up, simple to manage, and easy to integrate with Tap IP through CollabOS. Plus, use the included Multi Mount to mount Rally Bar Huddle one of three ways; on the wall, on the table, or above the display.
• Plus, use Rally Bar Huddle as a meeting room appliance, in USB mode connected to a meeting room PC, or connect via laptop.

General Specifications

• Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech CollabOS platform
• Enclosure: All-in-one enclosure with field replaceable front cover
• Device Management: Logitech Sync

Camera

• Digital Pan: ±48° at 4x zoom
• Digital Tilt: ±32° at 4x zoom
• Zoom: 4X HD digital zoom
• Diagonal Field of View: 120°
• Horizontal Field of View: 113°
• Vertical Field of View: 80°
• Resolution: 4k

Speakers

• Driver: 55 mm with bass reflex enclosure and patented suspension design
• Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
• Rated Power: 8W
• THD at 1W, 1kHz: <2%
• Speaker Sampling Rate: 48KHz
• Impedance: 4 Ohms

Microphones

• Frequency Response: 90Hz – 16kHz
• Sensitivity: -36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48 kHz
• Pickup Range: Up to 23 ft (7m)
• Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm

Interfaces

• HDMI Out: 1
• HDMI In: 1
• USB: 1x Type A USB 3.1, 1x Type C USB 3.1
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac
• Bluetooth: Bluetooth® Low Energy

Power and Cables

• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 2.1A
• Power Supply Dimensions: 4.48 in (114 mm) x 1.85 in (47 mm) x 1.27 in (32.3 mm)
• DC Cable: 5 ft (1.5 m)
• AC Cable: 4.9 ft (1 m)
• HDMI 1.4 Cable: 6.5 ft (2 m)
• USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)
