760095554 | 3071E SLT C6 4/23 U/UTP W1000 Cat6 Cable

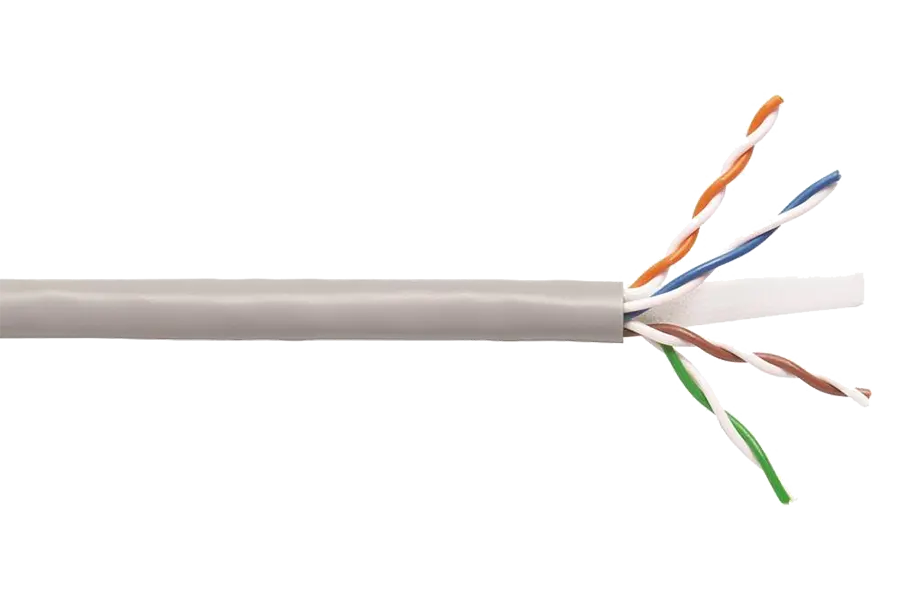

GigaSPEED XL® 3071 ETL Verified Category 6 U/UTP Cable, low smoke zero halogen, slate jacket, 4 pair count, 1000 ft (305 m) length, WE TOTE® box

Category : Copper
Brand : Commscope
Model : 760095554 | 3071E SL

Description

Product Classification

  • Regional Availability : Asia | Australia/New Zealand | EMEA | Latin America
  • Portfolio : SYSTIMAX®
  • Product Type : Twisted pair cable
  • Product Brand : GigaSPEED XL®

General Specifications

  • Product Number : 3071E
  • ANSI/TIA Category : 6
  • Cable Component Type : Horizontal
  • Cable Type : U/UTP (unshielded)
  • Conductor Type, singles : Solid
  • Conductors, quantity : 8
  • Jacket Color : Slate
  • Pairs, quantity : 4
  • Separator Type : Bisector
  • Transmission Standards : ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E

Dimensions

  • Cable Length : 304.8 m | 1000 ft
  • Diameter Over Conductor : 1.041 mm | 0.041 in
  • Diameter Over Jacket, nominal : 5.918 mm | 0.233 in
  • Jacket Thickness : 0.508 mm | 0.02 in
  • Conductor Gauge, singles : 23 AWG

Electrical Specifications

  • dc Resistance Unbalance, maximum : 5 %
  • dc Resistance, maximum : 7.61 ohms/100 m | 2.32 ohms/100 ft
  • Mutual Capacitance at Frequency : 5.6 nF/100 m @ 1 kHz
  • Nominal Velocity of Propagation (NVP) : 70 %
  • Operating Frequency, maximum : 300 MHz
  • Operating Voltage, maximum : 80 V
  • Remote Powering : Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
  • Segregation Class : c

Material Specifications

  • Conductor Material : Bare copper
  • Insulation Material : Polyolefin
  • Jacket Material : Low Smoke Zero Halogen (LSZH)
  • Separator Material : Polyolefin

Mechanical Specifications

  • Pulling Tension, maximum : 11.34 kg | 25 lb

Environmental Specifications

  • Installation temperature : 0 °C to +60 °C (+32 °F to +140 °F)
  • Operating Temperature : -20 °C to +60 °C (-4 °F to +140 °F)
  • Acid Gas Test Method : IEC 60754-2
  • EN50575 CPR Cable EuroClass Fire Performance : Dca
  • EN50575 CPR Cable EuroClass Smoke Rating : s2
  • EN50575 CPR Cable EuroClass Droplets Rating : d2
  • EN50575 CPR Cable EuroClass Acidity Rating : a1
  • Environmental Space : Low Smoke Zero Halogen (LSZH)
  • Flame Test Method : IEC 60332-3-22
  • Smoke Test Method : IEC 61034-2

Packaging and Weights

  • Cable weight : 37.204 kg/km | 25 lb/kft
  • Packaging Type : WE TOTE® box

Regulatory Compliance/Certifications

  • CENELEC  : EN 50575 compliant, Declaration of Performance (DoP) available
  • ISO 9001:2015  : Designed, manufactured and/or distributed under this quality management system
  • ROHS : Compliant
  • CHINA-ROHS  : Below maximum concentration value
  • REACH-SVHC : Compliant as per SVHC revision on www.commscope.com/ProductCompliance
