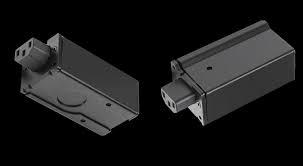

AMP-PNMK Plenum Kit for Crestron X-Series Audio Amplifiers

Overview

• The AMP-PNMK plenum kit connects AC power to the IEC C14 AC power inlet of a compatible Crestron X-Series audio amplifier, allowing the amplifier to meet the necessary plenum rating requirements. The AMP-PNMK is compatible with the AMP-X75, AMP-X300, and DM-NAX-AMP-X300 amplifiers.

 Key Features

• Enables compatible X-Series amplifiers to be installed in plenum spaces
• Connects to an IEC C14 AC power inlet to meet plenum rating requirements
• Compliant with UL 2043 Plenum Rating, CCEA Section 18?27-300.22, NFPA70-National Electric Code

Specifications

  Connections

• Wire lead size: 16 AWG

Knockout

• Knockout size: 3/4 in. NPT Fitting

Environmental

• Temperature: 4° to 176° F (-15.5° to 80° C)
• Humidity: 10% to 95% RH (non?condensing)

Dimensions

• Height: 3.85 in. (978 mm)
• Width: 1.67 in. (42 mm)
• Depth: 1.58 in. (40 mm)

Weight

• 0.34 lb (0.157 kg)

Compliance

• 0.34 lb (0.157 kg)
