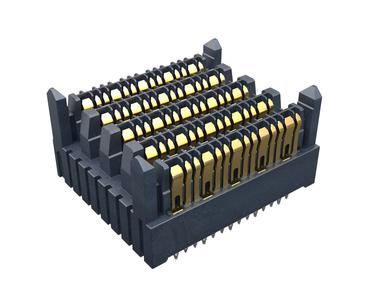

Backplane Connectors

Positioned at the heart of high-speed communications infrastructure, backplanes and midplanes need to accommodate constantly increasing network bandwidth demands and the enormous data processing capacity of today’s powerful servers and data centers. Molex collaborates with our customers to create innovative, scalable solutions that seamlessly support rapidly evolving speeds and feeds—while minimizing insertion loss and maintaining optimal signal integrity.

Category : Accessories
Brand : Molex
Model : Backplane Connectors

Description

Impulse Backplane Connectors

  • Signal Speed 56 Gbps; 112 Gbps
  • Pair Sizes 6, 7, 8
  • Impedance 90
Impel/Impel Plus Backplane Connectors
  • Signal Speed: 40 Gbps; 56 Gbps
  • Pair Sizes: 2 - 6
  • Impedance: 90 Ohms Ohms

Impact Backplane Connectors

  • Signal Speed: 25 Gbps
  • Pair Sizes: 2 - 6
  • Impedance: 85 Ohms; 100 Ohms

GbX I-trac Backplane Connectors

  • Achieve superior impedance control and 12.5Gbps data rates in high-bandwidth applications with GbX I-Trac Backplane Connector System offered in traditional and orthogonal configurations for design flexibility.
