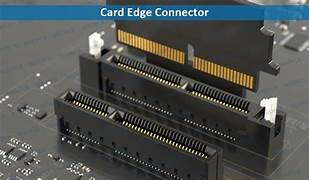

Card Edge Connectors

By creating industry standards and collaborating with customers, Molex is committed to offering a wide range of edge card receptacles with various circuit sizes, configurations, pitch and PCB-attach terminations for use in multiple applications across one solution.

Category : Accessories
Brand : Molex
Model : Card Edge Connectors

Description

High Speed (Signal)

EdgeLine High-Speed Connectors

  • Low-profile edge card connectors support data rates up to 25 Gbps and are available in multiple orientations and PCB thicknesses.

Sliver Edge Card Connector and Cable Assemblies

  • Versatile enough to be used in vertical, right-angle, straddle-mount and orthogonal-direct applications, can be terminated to a cable or copper flex solution and is recognized by industry standards, including SFF-TA-1002, JEDEC, OCP 3.0 and Gen-Z Consortium.

SpeedMezz Connector Family

  • A simple, small, robust receptacle design that mates to a high-speed mezzanine plug, edge card or cable to provide maximum space savings, and a flexible, modular wafer design that is interchangeable to allow customers to use differential, SE and power in the same connector interface.

EdgeLock Wire-to-Edge-Card Signal System

  • Provides space savings with a centered positive lock that snaps the assembly to the PCB for secure mating.

EXTreme LPHPower Connectors

  • Designed with power blades parallel to the PC board, this connector is a mixed, high-current power and signal connector system that picks up where traditional connectors leave off.

EXTreme PowerEdge Connectors

  • Can be combined (stacked end-to-end) to mate with multiple busbar tabs or card edges up to 203.2mm for power distribution applications.



Frequently Asked Questions

What is the Card Edge Connectors used for?

The Card Edge Connectors is a structured cabling product supplied by MetaPoint Technologies, used in LAN cabling projects for offices and data centres across Hyderabad, Telangana, Andhra Pradesh, and Karnataka.

Yes. MetaPoint Technologies supplies, installs, and supports the Card Edge Connectors for clients across Hyderabad, Telangana, Andhra Pradesh, and Karnataka, with warranty assistance and AMC options available.

Quantity depends on your floor plan, number of workstations, and cable run lengths. MetaPoint Technologies's team surveys your site and provides a bill of quantities before ordering the Card Edge Connectors.

MetaPoint Technologies, with 15 years of IT infrastructure experience, provides a tailored quote for the Card Edge Connectors based on your requirement. Contact MetaPoint Technologies's pre-sales team serving Hyderabad, Telangana, Andhra Pradesh, and Karnataka to get started.
