Cisco Aironet AIR-AP2802I-E-K9 Access Point

Product overview

For organizations paving the way for the new 802.11ac Wave 2 standard, the Cisco Aironet 2800 Series is the perfect solution. The access points go beyond getting ready for the new standard, providing the ultimate in flexibility and versatility.

For large enterprise organizations that rely on Wi-Fi to engage with customers, the 2800 Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage. This automation allows you to devote time to other pressing matters, secure in the knowledge that your Wi-Fi network is performing to its utmost potential.

The Aironet 2800 Series is packed with the features and capabilities that have made Cisco the industry leader, at a price point that is ideal for managing wireless growth, capacity, and coverage gaps in dense indoor environments.

With the 2800 Series, you can secure remote workers or the micro-office. Any Cisco Aironet or Catalyst access point can function as an OfficeExtend Access Point (OEAP). With an OEAP, an employee at home or in a temporary micro-office will have access to the corporate SSID and the corporate network without the need to set up a VPN or have any advanced technical know-how.

Cisco User Defined Network, a feature available in Cisco DNA Center, allows IT to give end users control of their very own wireless network partition on a shared network. End users can then remotely and securely deploy their devices on this network. Perfect for university dormitories or extended hospital stays, Cisco User Defined Network grants both device security and control, allowing each user to choose who can connect to their network. (Available second half of calendar year 2020.)

The Wi-Fi 6 readiness dashboard is a new dashboard in the Assurance menu of Cisco DNA Center. It will look through the inventory of all devices on the network and verify device, software, and client compatibility with the new Wi-Fi 6 standard. After upgrading, advanced wireless analytics will indicate performance and capacity gains as a result of the Wi-Fi 6 deployment. This is an incredible tool that will help your team define where and how the wireless network should be upgraded. It will also give you insights into the access point distribution by protocol (802.11 ac/n/abg), wireless airtime efficiency by protocol, and granular performance metrics.

Features and benefits

• 802.11ac Wave 2 support : Provides a theoretical connection rate of up to 2.6 Gbps per radio—roughly double the rates offered by today’s high-end 802.11ac access points.
• High Density Experience (HDX) : Best-in-class RF architecture, which provides high-performance coverage for a high density of client devices, giving the end user a seamless wireless experience. HDX includes features such as custom hardware in 802.11ac Wave 2 radios, Cisco CleanAir®, ClientLink 4.0, cross-access point noise reduction, and an optimized client roaming experience.
• Multiuser Multiple-Input Multiple-Output (MU?MIMO) technology : Supporting three spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput.
• Flexible Radio Assignment : Allows the access points to intelligently determine the operating mode of serving radios based on the RF environment. The access points can operate in the following modes:
  • 2.4-GHz and 5-GHz mode: One radio will serve clients in 2.4-GHz mode, while the other serves clients in 5-GHz mode.
  • Dual 5-GHz mode: Both radios inside the access point operate on the 5-GHz band, maximizing the benefits of 802.11ac Wave 2 and increasing client device capacity.
  • Security Monitoring and 5-GHz mode, One radio will serve 5-GHz clients, while the other is scanning the full spectrum for wIPS attackers, CleanAir interferers, and rogue devices.
• Dual 5-GHz radio support : Enables both radios to operate in 5-GHz client serving mode, allowing an industry-leading 5.2 Gbps (2 x 2.6 Gbps) over-the-air speeds while increasing client capacity.
• Smart antenna connector : An intelligent second physical antenna connector is included on 2800 Series models with an external antenna. This connector provides advanced network design flexibility for high-density and large open-area environments such as auditoriums, convention centers, libraries, cafeterias, and arenas/stadiums, allowing two sets of antennas to be connected and active on a single access point.
• 160-MHz channel support : Supporting channels up to 160 MHz wide, Dynamic Bandwidth Selection allows the access point to dynamically switch between 20-, 40-, 80-, and 160-MHz channels, depending on the RF channel conditions, providing the industry’s best-performing wireless network.
• Optimized access point roaming : Helps ensure that client devices associate with the access point in their coverage range that offers the fastest data rate available.
• Zero-impact Application Visibility and Control* : Uses dedicated hardware acceleration to improve the performance of line-speed applications such as Application Visibility and Control.
• Auto Link Aggregation (LAG) support : 802.3ad (LACP) compliant, allowing both Gigabit Ethernet interfaces to automatically LAG, increasing overall throughput to the access point.
• ClientLink 4.0 : Cisco ClientLink 4.0 technology to improve downlink performance to all mobile devices, including one-, two-, and three-spatial-stream devices on 802.11a/b/g/n/ac while improving battery life on mobile devices such as smartphones and tablets.
• CleanAir 160 MHz* : Cisco CleanAir technology, enhanced with 160-MHz channel support, provides proactive, high-speed spectrum intelligence across 20-, 40-, 80-, or 160-MHz-wide channels to combat performance problems due to wireless interference.
• Cisco Mobility Express : Flexible deployment mode through the Cisco Mobility Express Solution is ideal for medium-sized deployments and can support up to 100 access points. Easy setup allows the 2800 Series Access Points to be deployed on networks without a physical controller.

Product specifications

• Software :
  • Cisco Unified Wireless Network Software Release 8.2.111.0 or later
  • Cisco IOS ® XE Software Release 16.3
• Supported wireless LAN controllers :
  • Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 9800 Series Wireless Controllers, Cisco Virtual Wireless Controller
  • Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
  • Cisco Mobility Express
• 802.11n version 2.0 (and related) capabilities :
  • 4x4 MIMO with three spatial streams
  • Maximal Ratio Combining (MRC)
  • 802.11n and 802.11a/g beamforming
  • 20- and 40-MHz channels
  • PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 Dynamic Frequency Selection (DFS)
  • Cyclic Shift Diversity (CSD) support
• 802.11ac Wave 1 capabilities :
  • 4x4 MIMO with three spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support
• 802.11ac Wave 2 capabilities :
  • 4x4 MU-MIMO with three spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, 80, 160-MHz channels
  • PHY data rates up to 4680 Mbps
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support
• Integrated antenna :
  • Flexible radio (either 2.4 GHz or 5 GHz)
  • 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth
  • 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°
  • Dedicated 5-GHz radio
  • 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

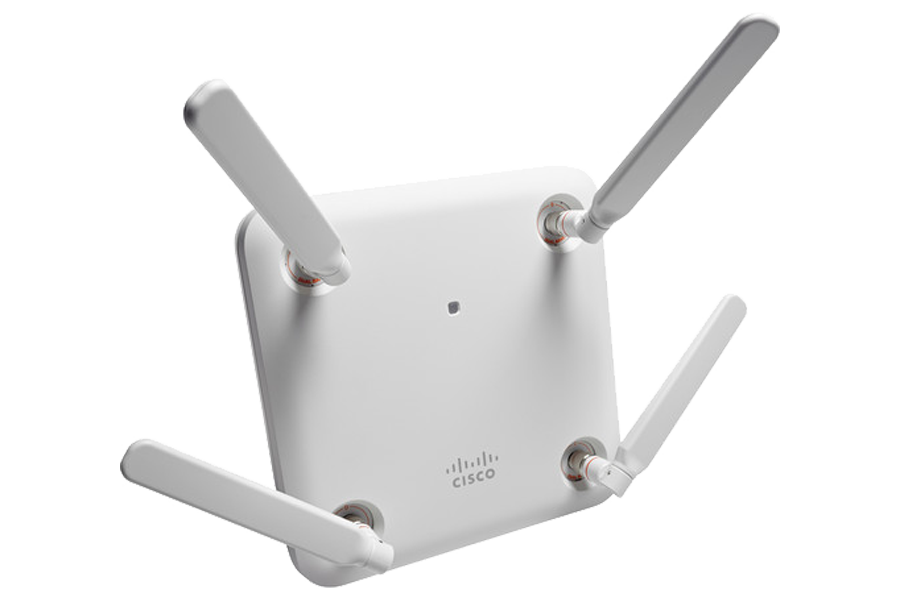

• External antenna (sold separately) :
  • 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
• Smart antenna connector :
  • Available on the 2802e Series access points only
  • Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point
  • Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio
• Interfaces
  • 2802I/E
  • 2x 100/1000BASE-T autosensing (RJ-45)
  • Management console port (RJ-45)
  • USB 2.0 (enabled via future software)
• Indicators
  • Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
• Dimensions (W x L x H) :
  • Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17”, 2802E: 8.66” x 8.77” x 2.50”
• Weight : 3.53 lb (1.6 kg)
• Input power requirements :
  • 802.3at PoE+, Cisco Universal PoE (Cisco UPOE ®)
  • 802.3at power injector (AIR-PWRINJ6=)
• Power draw
  • 22.5W at the PSE (20W at the PD) with all features enabled except for the USB 2.0 port
  • 26.5W at the PSE (23W at the PD) with the USB 2.0 port enabled
• Environmental
  • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
  • Nonoperating (storage) altitude test: 25?C, 15,000 ft.
  • Operating temperature: 32° to 104°F (0° to 40°C)
  • Operating humidity: 10% to 90% (noncondensing)
  • Operating altitude test: 40?C, 9843 ft.
• System memory
  • 1024 MB DRAM
  • 256 MB flash
• Warranty : Limited lifetime hardware warranty
• Available transmit power settings
  • 2.4 GHz
    • 23 dBm (200 mW)
    • 20 dBm (100 mW)
    • 2 dBm (1.56 mW)
    • 5 dBm (3.13 mW)
    • 8 dBm (6.25 mW)
    • 11 dBm (12.5 mW)
    • 14 dBm (25 mW)
    • 17 dBm (50 mW)
  • 5 GHz
    • 23 dBm (200 mW)
    • 20 dBm (100 mW)
    • 17 dBm (50 mW)
    • 14 dBm (25 mW)
    • 11 dBm (12.5 mW)
    • 8 dBm (6.25 mW)
    • 5 dBm (3.13 mW)
    • 2 dBm (1.56 mW)
