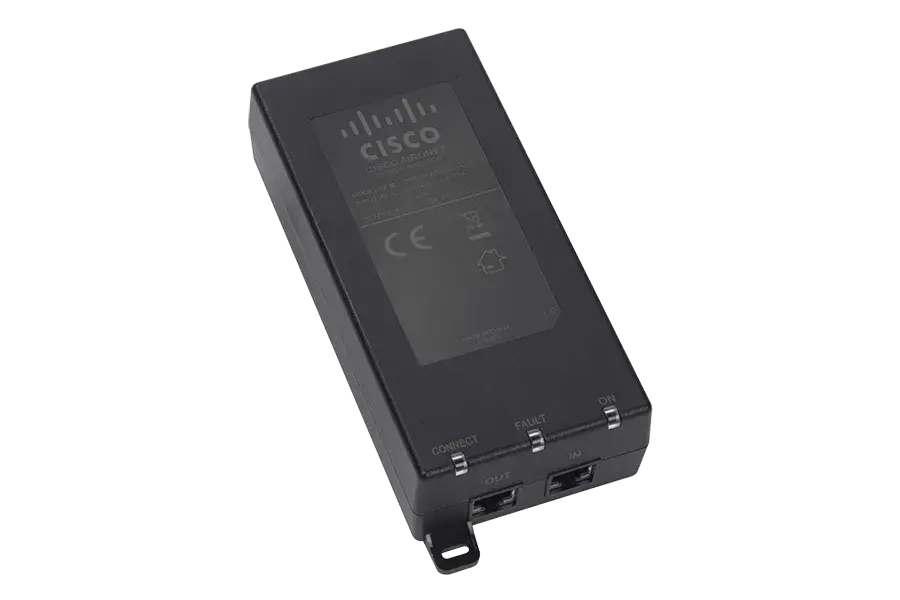

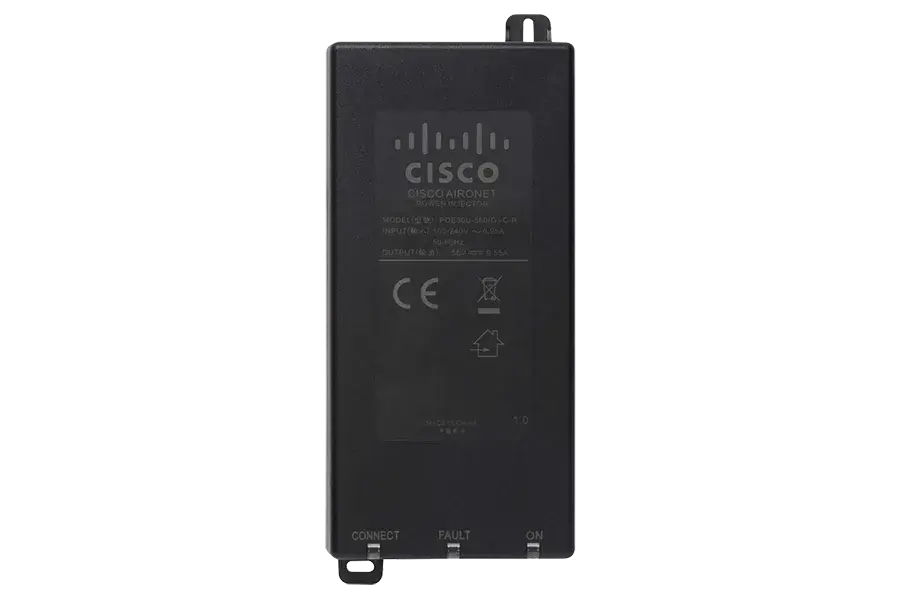

Cisco Aironet Power Injector AIR-PWRINJ6

Product Overview

The Cisco Aironet Power Injector AIR-PWRINJ6= increases wireless LAN deployment flexibility of supported Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.

The single-port PoE injector provides up to 30 Watts and is compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) systems. This power injector is for use with the Cisco Aironet 2800 series and 3800 series access points.

Specifications

• Dimensions (W, H, L) :
  • Model 1:
    • 53 mm x 32.5 mm x 140 mm
    • 2.09 in x 1.28 in x 5.5 in
  • Model 2:
    • 65 mm x 36 mm x 140 mm
    • 2.55 in x 1.42 in x 5.51 in
• Data Rates : 10/100/100 Mbps
• PoE Output :
  • Pin Assignment and Polarity: 4/5 (+), 7/8 (-)
  • Output Power Voltage: 55V DC
• User Port Power : 30 Watts
• Input Power Requirements :
  • AC Input Voltage: 100 to 240V AC
  • AC Input Current: 0.67 A @ 100 - 240 V AC
  • AC Frequency: 50 to 60 Hz
• Weight :
  • Model 1: 0.44 lbs (200 g)
  • Model 2: 0.47 lbs (215 g)
• Connectors : Shielded RJ-45, EIA 568A and 568B
• Environmental Conditions
  • Operating Ambient Temperature:
    • -4ºF to 104ºF (-20ºC to 40ºC) at 30 W
    • -4ºF to 122ºF (-20ºC to 50ºC) at 25 W
  • Operating Humidity:
    • Maximum 90%, Non-condensing
  • Storage Temperature:
    • -4ºF to 158ºF (-20ºC to 70ºC)
• Reliability : MTBF: 100,000 hrs @ 25ºC
• Thermal Rating : 20 BTU/Hr @ 240 V AC
• Regulatory Compliance : IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant
• Electromagnetic Emission and Immunity :
  • FCC Part 15, Class B
  • EN 55022 Class B (Emissions)
  • EN 55024 (Immunity)
  • VCCI
• Safety :
• UL 60950-1
• IEC/EN 60950-1
