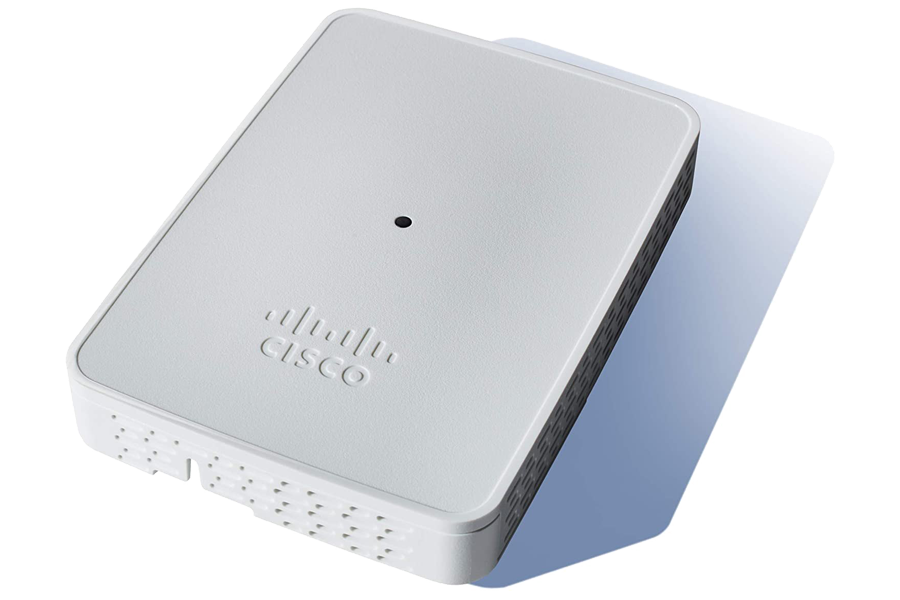

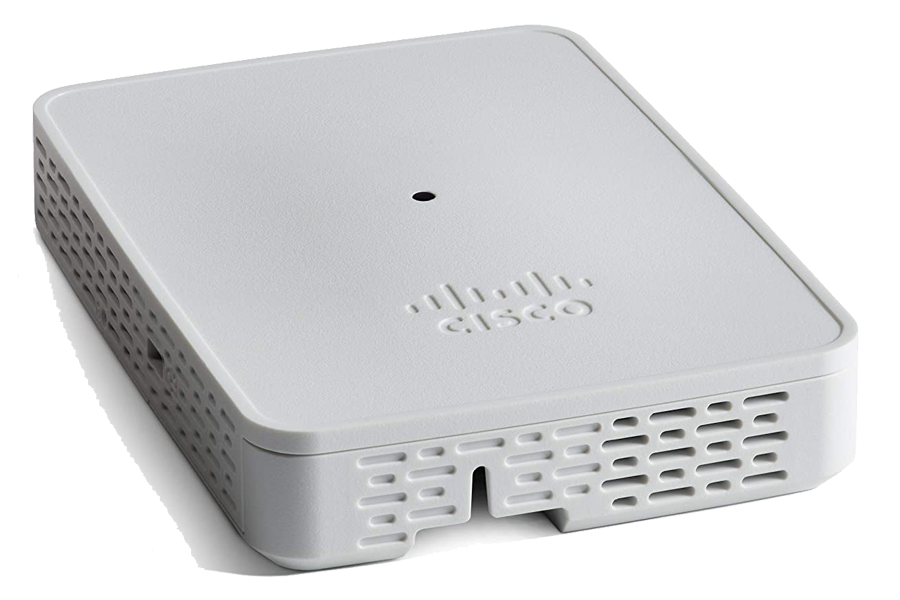

Cisco Business CBW143ACM-D-IN Mesh Extender

This easy-to-install series of wireless mesh extenders expands existing wireless coverage, ideal for a small business and small office environment.

Product overview

The Cisco® Business 100 Series Mesh Extenders offer highly secure wired and wireless connectivity to the home office or small office, and work in hard-to-reach places. These mesh extenders provide seamless coverage and expanded capacity in conjunction with Cisco Business access points.

Features and benefits

Build with simplicity and flexibility in mind, the Cisco Business 100 Series Mesh Extenders expand the deployment of traditional wireless networks while reducing deployment costs. Perfect for use within a small office or back office, they provide connectivity to both local and cloud-based services.

When paired with a Cisco Business access point, the Cisco Business 100 Series Mesh Extenders provide a highly secure and seamless wireless end-user experience.

Cisco Business 141ACM Mesh Extender

• Easy to install on a desktop
• Allows wired access via a single RJ-45 10/100/1000 auto detection port. This mesh extender come with three local Gigabit Ethernet ports and one uplink Gigabit Ethernet port, allowing for a variety of connections.

Cisco Business 142ACM and 143ACM Mesh Extenders

• Ultra-compact form factor with flexible mounting options:
• 142ACM: Mount directly to an AC outlet
• 143ACM: Wall mount

Features and benefits

MU-MIMO : Multi-user (MU) Multiple-Input Multiple-Output (MU-MIMO) allows simultaneous data transmission to multiple 802.11ac Wave 2–capable clients to improve the client experience.

Mesh technology support : Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business.

Two-step setup : Simplified deployment with two-step setup: Scan a QR code via the Cisco Business Mobile app, and power on the device. No additional setup is required.

Product specifications

Mesh Extender Differentiators

• Ethernet Ports
  • 1
• PoE Output
  • -
• Dimensions
  • Access point (without mounting bracket): 3.25 x 4.5 x 0.75 in (82.5 x 114 x 19 mm)

• Power Input
  • 100-240V 50/60Hz AC Power
• Power Draw
  • 8.5W
• Weight
  • Access point without mounting bracket or any other accessories: 10 oz (280 g)

Specifications and requirements

• Requirements
  • Requires a Cisco Business access point within the network for mesh connectivity
• Authentication and security
  • Wi-Fi Protected Access 2 and 3 (WPA2 and WPA3)
  • 802.1X, RADIUS authentication, authorization, and accounting (AAA)
  • 802.11r and 802.11i
• Maximum clients
  • Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point
• 802.11ac
  • 2x2 MU-MIMO with two spatial streams, up to 867 Mbps
  • 20-, 40-, and 80-MHz channels
  • Dynamic Frequency Selection (DFS)
• Ethernet ports
  • 4 (includes 1 PoE Output port)
• Data rates supported

• 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
• 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 5 and 4 Mbps
• 802.11n data rates on 2.4 GHz: 6.5 to 144 Mbps (MCS0-MCS15)
• 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9)
• Maximum number of nonoverlapping channels
  • D (D regulatory domain):
  • 2.412 to 2.462 GHz; 11 channels
  • 5.180 to 5.320 GHz; 8 channels
  • 5.745 to 5.825 GHz; 5 channels
  • Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
• Available transmit power settings
  • 2.4 GHz
    • Up to 20 dBm
  • 5 GHz
    • Up to 20 dBm
  • Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
• Integrated antennas
  • 2.4 GHz, gain 2 dBi
  • 5 GHz, gain 3 dBi
• Indicators
  • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
• Environmental
  • Operating
  • Temperature: 32° to 104°F (0° to 50°C)
  • Humidity: 10% to 90% (noncondensing)
  • Maximum altitude: 9843 ft (3000 m) at 104°F (40°C)
  • Nonoperating (storage and transportation)
  • Temperature: -22° to 158°F (-30° to 70°C)
  • Humidity: 10% to 90% (noncondensing)
  • Maximum altitude: 15,000 ft (4500 m) at 77°F (25°C)
• System
  • 512 MB DRAM, 128 MB flash
  • 710-MHz quad-core processor
• PoE output
  • 802.3af: 15.4W at port
• Physical security
  • Kensington lock slot
• Warranty
  • Cisco Business limited lifetime hardware warranty
  • Free software updates, no service contract required
