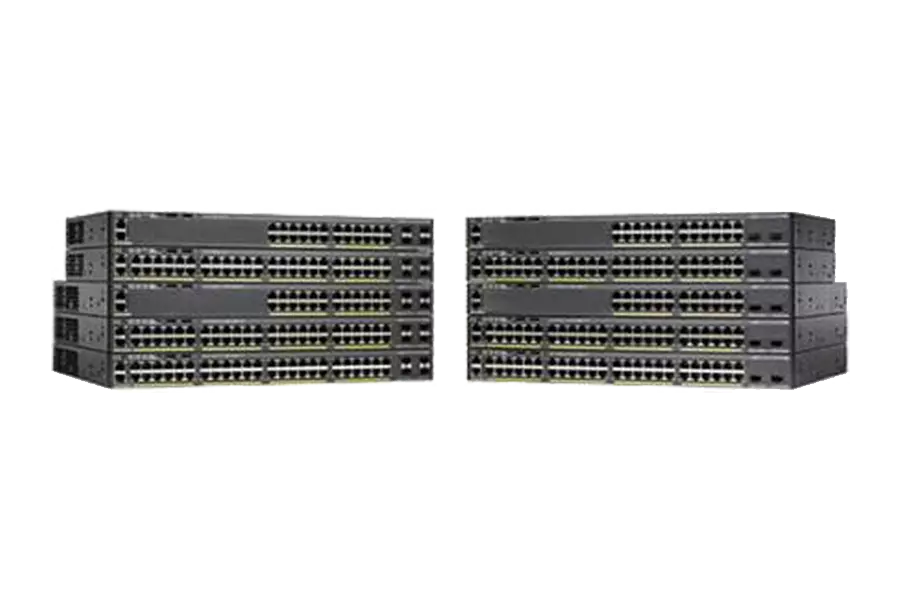

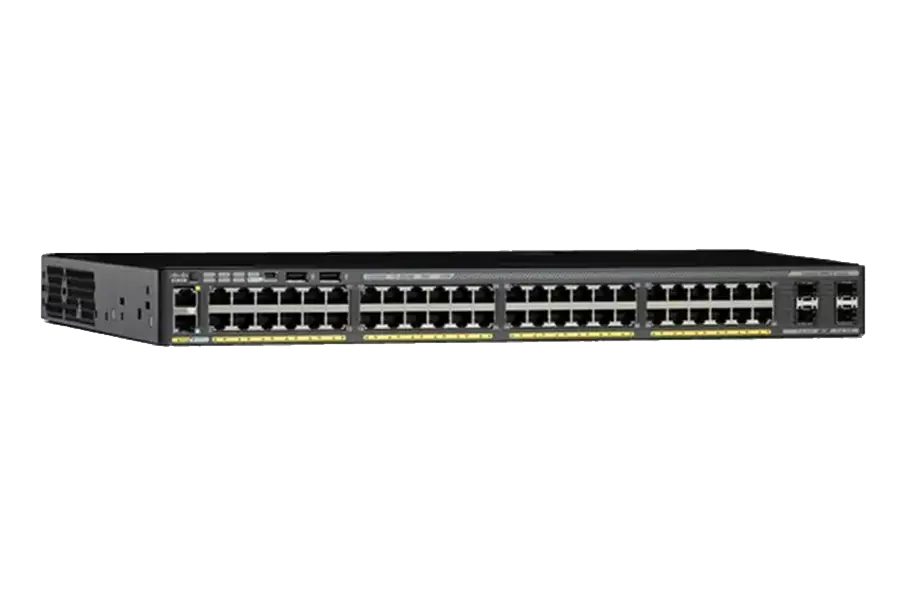

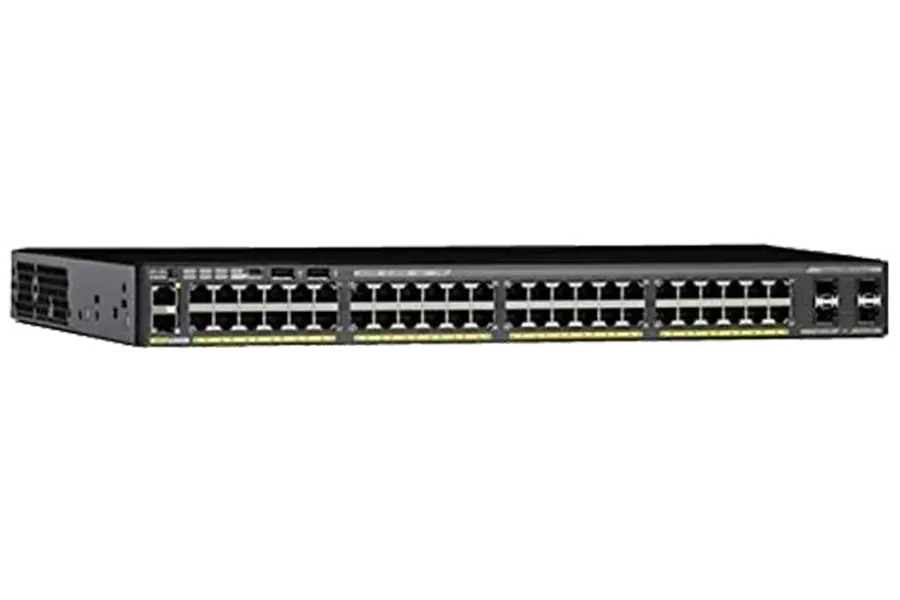

Cisco Catalyst 2960X-48FPS-L Switch

Cisco Catalyst 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. They operate on Cisco IOS Software and support simple device management as well as network management. The Cisco Catalyst 2960-X and 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.

Product Highlights

• Cisco Catalyst 2960-X and 2960-XR Series Switches feature:
• 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
• 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 2 fixed 10 Gigabit Ethernet SFP+ uplinks
• PoE+ support with a power budget of up to 740W and Perpetual PoE
• Cisco IOS LAN Base[1] or LAN Lite1 and Cisco IOS IP Lite[2]
• Device management with web UI, over-the-air access via Bluetooth, Command-Line Interface (CLI), Simple Network Management Protocol (SNMP), and RJ-45 or USB console access
• Network management with Cisco Prime®, Cisco Network Plug and Play, and Cisco DNA Center
• Stacking with FlexStack-Plus and FlexStack-Extended
• Layer 3 features with routed access (Open Shortest Path First [OSPF]), static routing, and Routing Information Protocol (RIP)
• Visibility with Domain Name System as an Authoritative Source (DNS-AS) and Full (Flexible) NetFlow
• Security with 802.1X, Serial Port Analyzer (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
• Reliability with higher Mean Time Between Failures (MTBF) and Enhanced Limited Lifetime Warranty (E-LLW)
• Resiliency with optional dual field-replaceable power supplies2

Power Supply

An external redundant power supply option is supported on the Cisco Catalyst 2960-X Series Switches. These switches come with one fixed power supply and an option for an external redundant power supply (Cisco Redundant Power System [RPS] 2300).

Dual redundant power supplies are supported on the Cisco Catalyst 2960-XR Series Switches. These switches ship with one power supply by default. The second power supply can be purchased at the time of ordering the switch or as a spare. These power supplies have built-in fans to provide cooling

Specifications

• MTBF (Hours) : 232610
• Feature Set : LAN Base
• Power (Voltage - auto-ranging) : 100 to 240 VAC
• Power (Current) : 9A to 4A
• Power consumption (weighted average) : 66.6
• Uplinks : 4 SFP
• Power consumption (10% traffic) : 66.6
• Dimensions (inches) : 1.75 x 14.5 x 17.5
• Acoustics: Sound pressure (Typical/maximum) : 39 dB / 43 dB
• Weight (Kilograms) : 5.8
• Acoustics: Sound power (Typical/maximum) : 4.9 B / 5.3 B
• Power consumption (0% traffic) : 51.9
• Power consumption (100% traffic) : 66.8
• Power rating (switch maximum consumption) : 0.89 kVA
• Power (Frequency) : 50 to 60 Hz
• Maximum PoE (IEE 802.3af) ports : 48 ports up to 15.4W
• Maximum PoE+ (IEEE 802.3at) ports : 24 ports up to 30W
• Flexstack-Plus and Flexstack-Extended Stacking : Optional
• Dimensions (metric) : 4.5 x 36.8 x 44.5cm
• PoE+ Power : 740W
• 10/100/1000 Ethernet Ports : 48
• Weight (lbs) : 12.9
• Forwarding rate: 64-byte Layer 3 packets : 107.1 Mpps
