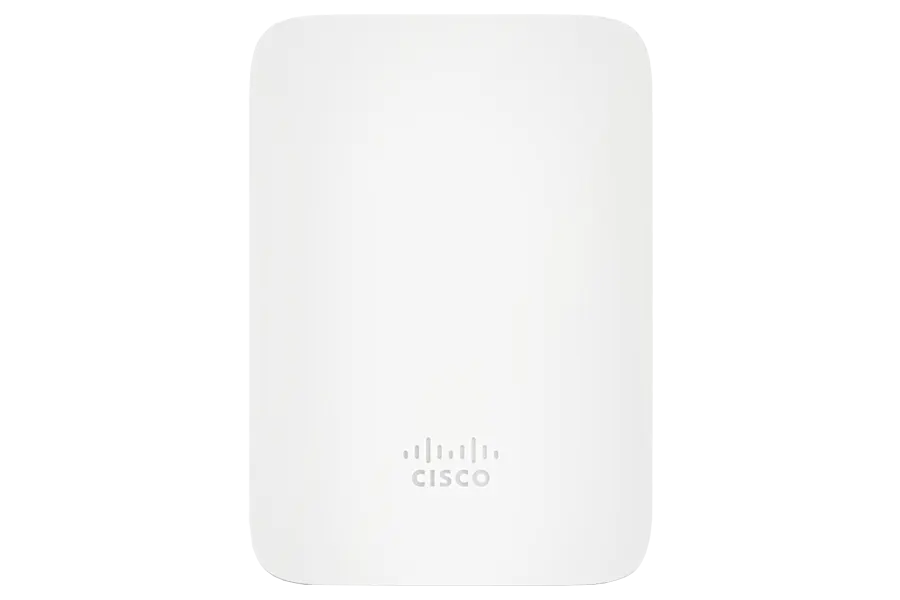

Cisco Meraki MR30H - Wireless Access Point

802.11ac Wave 2 wireless with integrated gigabit switch

Category : Cisco Wireless
Brand : Cisco
Model : MR30H

Description

Highlights

Ideal use cases

  • In-room hotel or dormitory deployments
  • IP-enabled devices in the same room

Hardware features

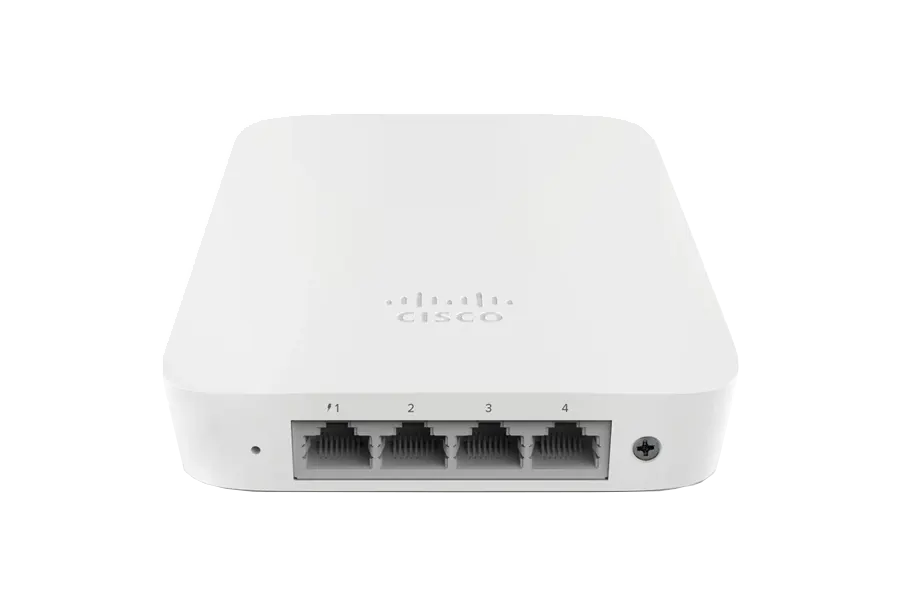

  • Integrated 4 port gigabit switch
  • 3 radios: 2.4 GHz, 5 GHz, and dual-band WIDS/WIPS
  • Integrated Bluetooth? Low Energy radio
  • 2×2 MU-MIMO 802.11ac Wave 2
  • Up to 1.3 Gbps aggregate dual-band frame rate
  • 802.3af PoE compatible

Cloud management

  • Network-wide visibility and control
  • Self-provisioning for rapid deployment
  • Automatic reporting
  • Seamless firmware updates

Enterprise security

  • 802.1X integration
  • Air Marshal: real-time WIPS with forensics
  • Stateful Layer 3-7 firewall
  • Identity-based group policies
  • Built-in antivirus scan (NAC)
  • Built-in Umbrella DNS Security*
  • Adaptive Policy automated segmentation**

Guest access

  • 1-click secure guest access
  • Guest isolation firewall
  • Customizable splash pages

RF optimization

  • Dual-concurrent, 2-stream MIMO radios
  • Radios optimized for rate-vs-range performance
  • Third radio dedicated to security and RF management
  • Built-in real-time RF spectrum view
  • Cloud-based automatic RF optimization

Layer 7 traffic shaping

  • Classify hundreds of applications
  • Create per-application bandwidth limits
  • Prioritize productivity apps
  • Restrict recreational traffic

Location Analytics

  • Measure visitor capture rate, visit length, and repeat visit rate
  • Measure visitor trends over time and compare performance across locations
  • Enable location services through integrated iBeacon functionality

SPECIFICATIONS

Radios

  • 2.4 GHz 802.11b/g/n client access radio
  • 5 GHz 802.11a/n/ac client access radio
  • 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
  • 2.4 GHz Bluetooth Low Energy radio with beacon and Bluetooth Low Energy scanning support
  • Concurrent operations of all four radios

Operating Bands

  • 2.412-2.484 GHz
  • 5.150-5.250 GHz (UNII-1)
  • 5.250-5.350 GHZ (UNII-2)
  • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
  • 5.725 -5.825 GHz (UNII-3)

802.11ac & 802.11n Capabilities

  • 2x2 multiple input, multiple output (MIMO) with two spatial streams
  • SU-MIMO and MU-MIMO support
  • Maximal ratio combining (MRC) & Beamforming
  • 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
  • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
  • Packet aggregation

Power

  • Power over Ethernet: 37 - 57 (802.3at compatible)
  • Power consumption: 25W max (802.3at)
  • 802.3af operating mode disables PoE out
  • Power over Ethernet injector sold separately

Mounting

  • Mounting hardware included for US, UK, EU, AU & Asia single gang wall jacks

Physical Security

  • Two security screw options (included)

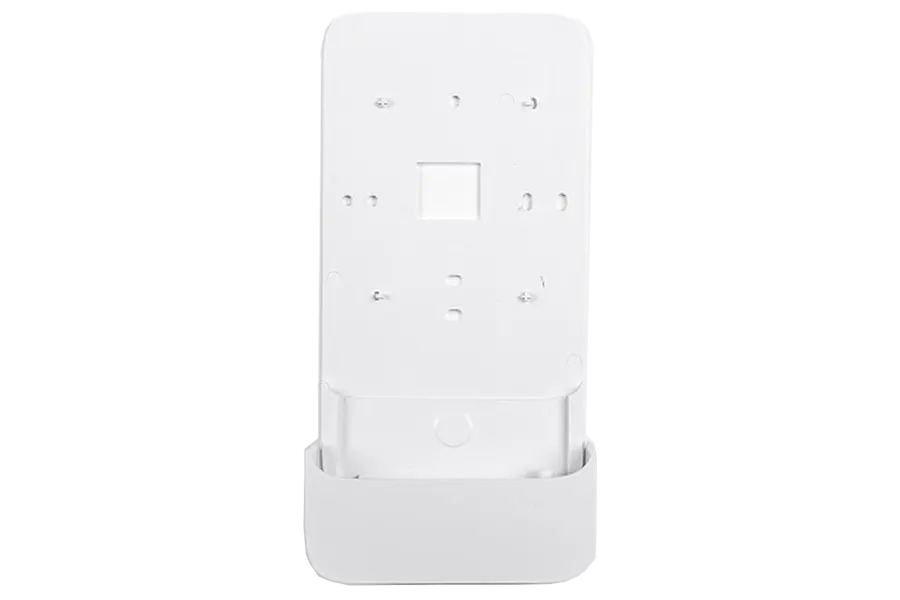

  • Concealed mount plate

Environment

  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5 to 95% non-condensing

Physical Dimensions

  • 6.1” x 4.3” x 0.9” (155 mm x 110 mm x 23 mm), not including mount foot or mount plate
  • Weight: 14.4 oz (409 g)

Antenna

  • Integrated omni-directional antennas (3.7 dBi gain at 2.4 GHz, 4.8 dBi gain at 5 GHz)
  • Interfaces
  • 1 × 10/100/1000 BASE-T Ethernet (RJ45) input
  • 1 × Gigabit Ethernet (RJ45) with 802.3af Power over Ethernet output
  • 3 × Gigabit Ethernet (RJ45) out

Security

  • Integrated layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1Q) and tunneling with IPSec VPN
  • PCI compliance reporting
  • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
  • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Quality of Service

  • Advanced Power Save (U-APSD)
  • WMM Access Categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping

Mobility

  • PMK, OKC, and 802.11r for fast Layer 2 roaming
  • Distributed or centralized Layer 3 roaming

LED Indicators

  • 4x 2 Ethernet status for Ethernet ports
  • 1 power/booting/firmware upgrade status

Warranty

  • Lifetime hardware warranty with advanced replacement included

Ordering Information

  • MR30H-HW MR30H-HW: Meraki MR30H Cloud Managed 802.11ac AP
  • MA-INJ-4-XX Cisco Meraki 802.3at Power over Ethernet Injector (XX = US, EU, UK or AU)
  • Note: Meraki Enterprise license required
