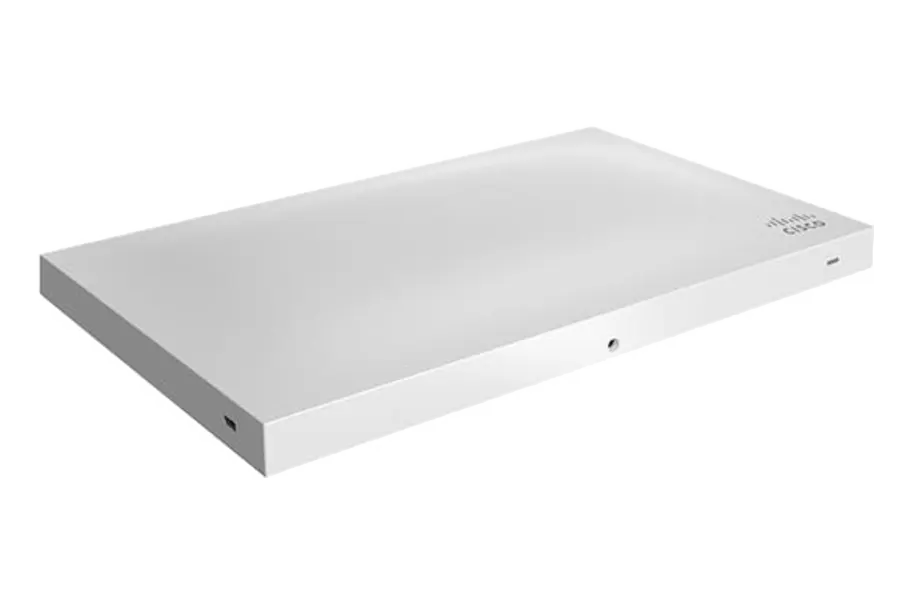

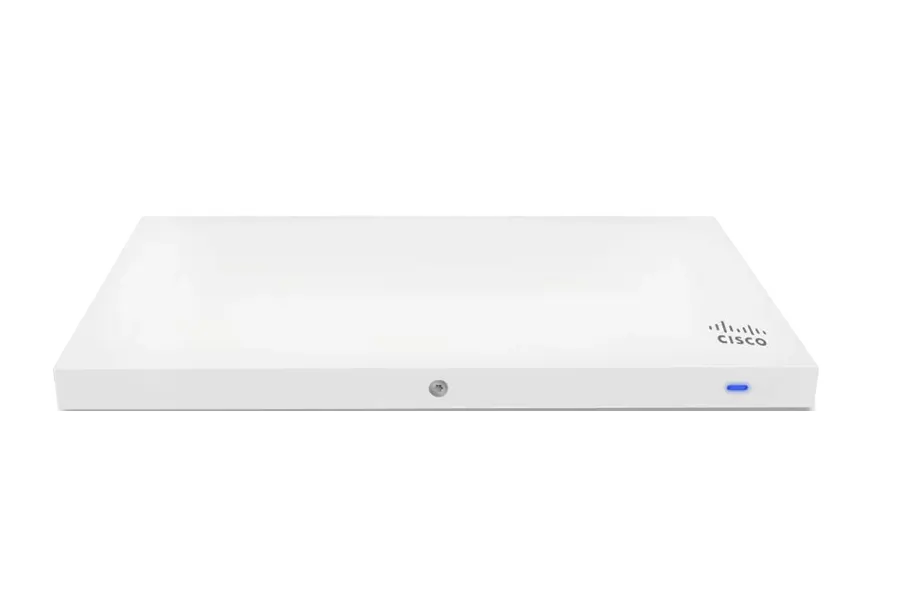

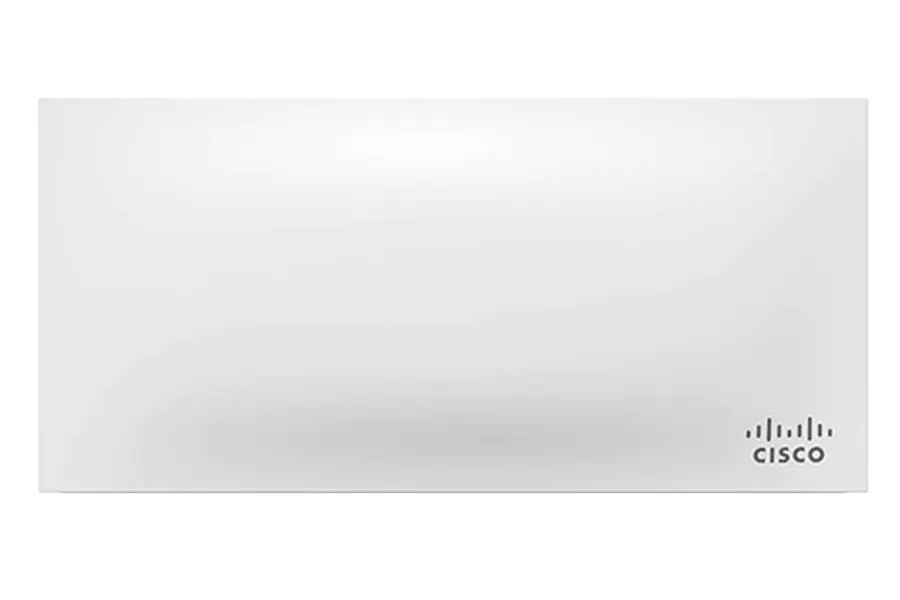

Cisco Meraki MR33 - Wireless Access Point

Highlights

Ideal use cases

• General use wireless

Hardware features

• 3 radios: 2.4 and 5 GHz, dual-band WIDS/WIPS
• 2-stream 802.11ac and 802.11n, up to 1.3 Gbps
• Integrated Bluetooth? Low Energy radio
• 2×2 MU-MIMO 802.11ac Wave 2
• Up to 1.3 Gbps aggregate dual-band frame rate
• 802.3af PoE compatible

Cloud management

• Network-wide visibility and control
• Self-provisioning for rapid deployment
• Automatic reporting
• Seamless firmware updates

Enterprise security

• 802.1X integration
• Air Marshal: real-time WIPS with forensics
• Stateful Layer 3-7 firewall
• Identity-based group policies
• Built-in antivirus scan (NAC)
• Built-in Umbrella DNS Security*
• Adaptive Policy automated segmentation**

Guest access

• 1-click secure guest access
• Guest isolation firewall
• Customizable splash pages

RF optimization

• Dual-concurrent, 2-stream MIMO radios
• Third radio dedicated to security and RF management
• Built-in real-time RF spectrum view
• Cloud-based automatic RF optimization

Layer 7 traffic shaping

• Classify hundreds of applications automatically
• Create per-application bandwidth limits
• Prioritize productivity apps
• Restrict recreational traffic

Mesh

• Self-configuring, self-optimizing mesh
• High performance multi-radio routing protocols
• Extends coverage to hard-to-wire areas
• Self-heals after cable or switch failures

Device management

• Create device-specific firewall rules
• Deploy applications and updates
• Troubleshoot issues with built-in RDP

SPECIFICATIONS

Radios

• 2.4 GHz 802.11b/g/n client access radio
• 5 GHz 802.11a/n/ac client access radio
• 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
• 2.4 GHz Bluetooth Low Energy radio with beacon and Bluetooth Low Energy scanning support
• Concurrent operations of all four radios

Operating Bands

• 2.412-2.484 GHz
• 5.150-5.250 GHz (UNII-1)
• 5.250-5.350 GHZ (UNII-2)
• 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
• 5.725 -5.825 GHz (UNII-3)

802.11ac & 802.11n Capabilities

• 2x2 multiple input, multiple output (MIMO) with two spatial streams
• Maximal ratio combining (MRC)
• Beamforming
• 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
• Up to 256 QAM on both 2.4 GHz and 5 GHz bands
• Packet aggregation

Power

• Power over Ethernet: 37 - 57 V (802.3af compatible)
• Alternative 12 V DC input
• Power consumption: 15W max (802.3af)
• Power over Ethernet injector and DC adapter sold separately

Mounting

• All standard mounting hardware included
• Desktop, ceiling, and wall mount capable
• Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes
• Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security

• Two security screw options (included)
• Kensington lock hard point
• Concealed mount plate with anti-tamper cable bay

Environment

• Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5 to 95% non-condensing

Physical Dimensions

• 8.5” x 4.3” x 1.3” (215 mm x 110 mm x 32 mm), not including deskmount feet or mount plate
• Weight: 13.2 oz (376.5 g)

Antenna

• Integrated omni-directional antennas (3.8 dBi gain at 2.4 GHz, 3.9 dBi gain at 5 GHz)

Interfaces

• 1 × 10/100/1000 BASE-T Ethernet (RJ45)
• 1 × DC power connector (5.5 mm x 2.5 mm, center positive)

Security

• Integrated layer 7 firewall with mobile device policy management
• Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
• Flexible guest access with device isolation
• VLAN tagging (802.1Q) and tunneling with IPSec VPN
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
• TKIP and AES encryption
• Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Quality of Service

• Advanced Power Save (U-APSD)
• WMM Access Categories with DSCP and 802.1p support
• Layer 7 application traffic identification and shaping

Mobility

• PMK, OKC, and 802.11r for fast Layer 2 roaming
• Distributed or centralized Layer 3 roaming

LED Indicators

• 4x 2 Ethernet status for Ethernet ports
• 1 power/booting/firmware upgrade status

Warranty

• Lifetime hardware warranty with advanced replacement included

Compliance

• RoHS

Ordering Information

• MR33-HW Meraki MR33 Cloud Managed 802.11ac AP
• MA-PWR-30W-XX Meraki AC Adapter for MR Series (XX = US, EU, UK or AU)
• MA-INJ-4-XX Cisco Meraki 802.3at Power over Ethernet Injector (XX = US, EU, UK or AU)
• Note: Meraki Enterprise license required
