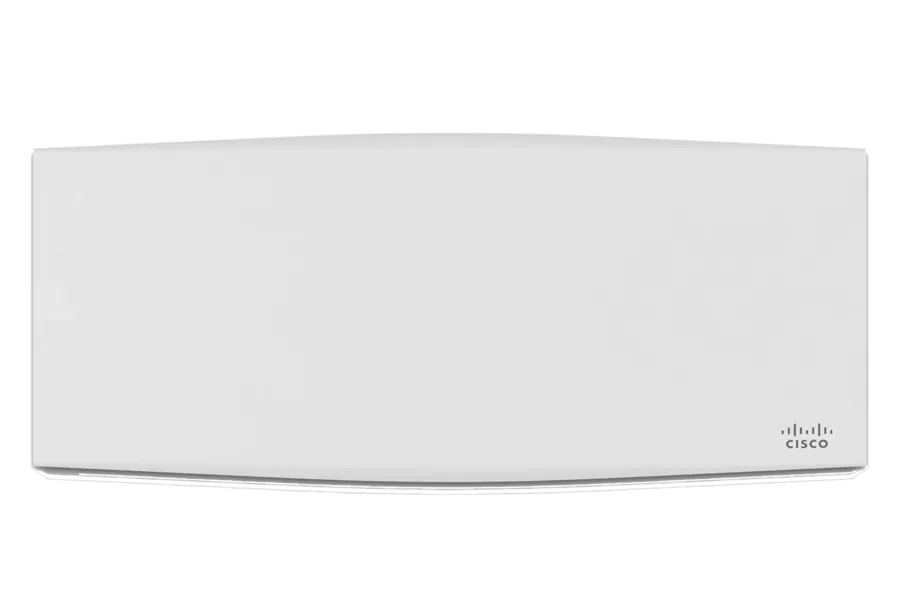

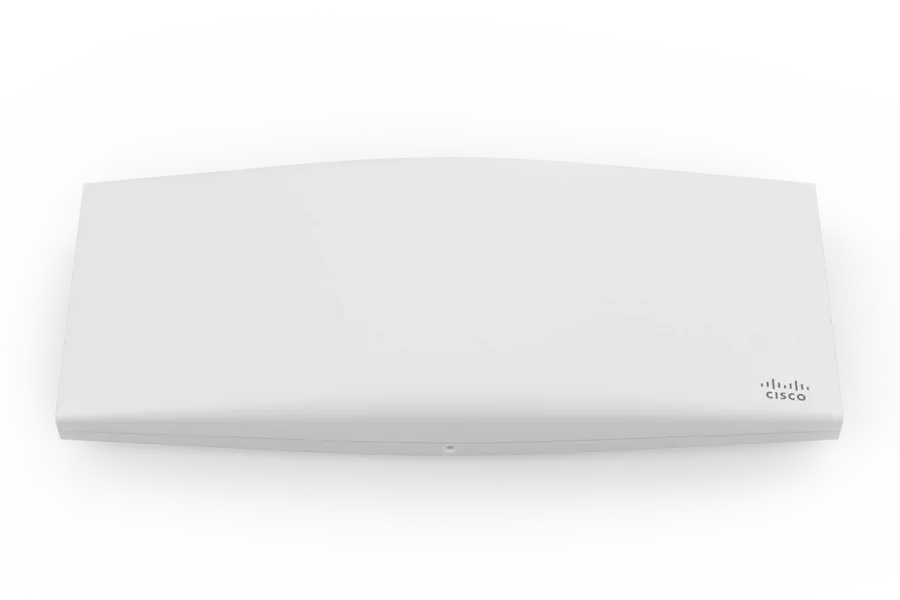

Cisco Meraki MR45 - Wireless Access Point
Wi-Fi 6 (802.11ax) compatible with Multigigabit Ethernet Cloud management, 802.11ax performance, and a dedicated security radio
Category : Cisco Wireless
Brand : Cisco
Model : MR45
Description
Highlights
Ideal use cases
- Performance-critical wireless LANs
- High-density environments
Hardware features
- 4 radios: 2.4 GHz, 5 GHz, dual-band
- Embedded WIDS/WIPS and Bluetooth?
- 4-stream MU-MIMO 802.11ax compatible
- 1 × 2.5 Gbps Multigigabit Ethernet port
- PoE: 802.3at
- AC adapter available
Cloud management
- Network-wide visibility and control
- Self-provisioning for rapid deployment
- Automatic reporting
- Seamless firmware updates
Enterprise security
- 802.1X and native Active Directory integration
- Air Marshal: Real-time WIPS with forensics
- Stateful Layer 3-7 firewall
- Identity-based group policies
- Built-in antivirus scan (NAC)
- Built-in Umbrella DNS Security*
- Adaptive Policy automated segmentation**
Guest access
- 1-click secure guest access
- Guest isolation firewall
- Customizable splash pages
- Integrated Facebook login
RF optimization
- Dual-concurrent radios with MU-MIMO support
- Radios optimized for rate-vs-range performance
- Third radio dedicated to security and RF management
- Built-in real-time RF spectrum view
- Cloud-based automatic RF optimization
Layer 7 traffic shaping
- Classifies hundreds of applications
- Create per-application bandwidth limits
- Prioritize productivity apps
- Restrict or block recreational traffic
Presence location analytics
- Measure visitor capture rate, visit length, and repeat visit rate
- Measure visitor trends over time and compare performance across locations
Device management
- Create device-specific firewall rules
- Monitor and track device inventory
- Deploy applications and enforce security settings
SPECIFICATIONS
Radios
- 2.4 GHz 802.11b/g/n/ax client access radio
- 5 GHz 802.11a/n/ac/ax client access radio
- 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
- Bluetooth Low Energy radio with Beacon support
- Concurrent operation of all four radios
- Max aggregate frame rate: 3.5 Gbps
- Supported frequency bands (country-specific restrictions apply):
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHz (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.1725-5.825 GHz (UNII-3)
Antenna
- Integrated omni-directional antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
- Individual antenna elements for each radio
802.11ax compatible, 802.11ac Wave 2, and 802.11n Capabilities
- UL/DL-OFDMA, TWT Support, BSS Coloring
- 4×4 multiple input, multiple output (MIMO) with 4 spatial streams
- SU-MIMO and DL MU-MIMO support
- Maximal ratio combining (MRC) and beamforming
- 20 and 40 MHz channels (802.11n) 20, 40, and 80 MHz channels (802.11ac Wave 2)
- Up to 1024 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
Power
- Power over Ethernet: 42.5 - 57 V (802.3at) (802.3at compliant)
- Alternative 12V DC input
- Power consumption: 18 W max (802.3at)
- Power over Ethernet injector and DC adapter sold separately
Interfaces
- 1× 100/1000/2.5G BASE-T Ethernet
- 1× DC power connector (5.5 mm × 2.5 mm, center positive)
Mounting
- All standard mounting hardware included
- Desktop, ceiling and wall mount capable
- Ceiling tile rail (9/16, 15/16, or 1 1/2" flush or recessed rails), assorted cable junction boxes
- Bubble level on mounting cradle for accurate horizontal wall mounting
Physical Security
- Two security screw options included
- Kensington lock hard point
- Concealed mount plate with anti-tamper cable bay
Environment
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
Physical Dimensions
- 12.05" × 5.06" × 1.74" (30.6 cm × 12.84 cm × 4.426 cm), not including deskmount feet or mount plate
- Weight: 28.22 oz (800 g)
Security
- Integrated Layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- VLAN tagging (802.1Q) and tunneling with IPSec VPN
- PCI compliance reporting
- WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE)
- EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
- TKIP and AES encryption
- Enterprise Mobility Management (EMM) and Mobile Device Management (MDM) integration
- Cisco ISE integration for guest access and BYOD posturing
Quality of Service
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
Mobility
- PMK, OKC, and 802.11r for fast Layer 2 roaming
- Distributed or centralized Layer 3 roaming
Analytics
- Embedded location analytics reporting and device tracking
- Global L7 traffic analytics reporting per network, per device, and per application
Warranty
- Lifetime hardware warranty with advanced replacement included
Ordering Information
- MR45-HW: Meraki MR45 Cloud Managed 802.11ax AP
- MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)
- MA-INJ-5-XX: Cisco Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
- Note: Meraki access point license required ** software features can be enabled via firmware updates
