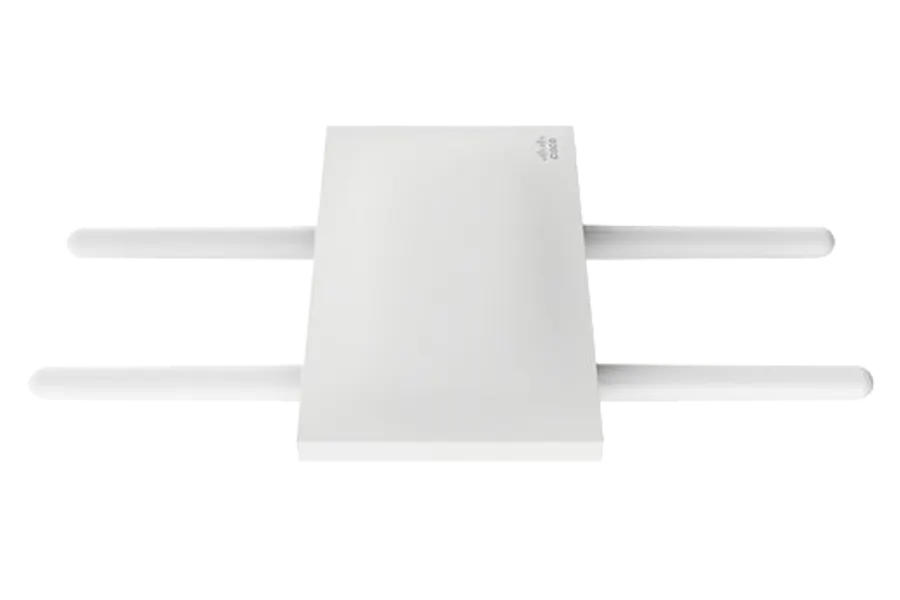

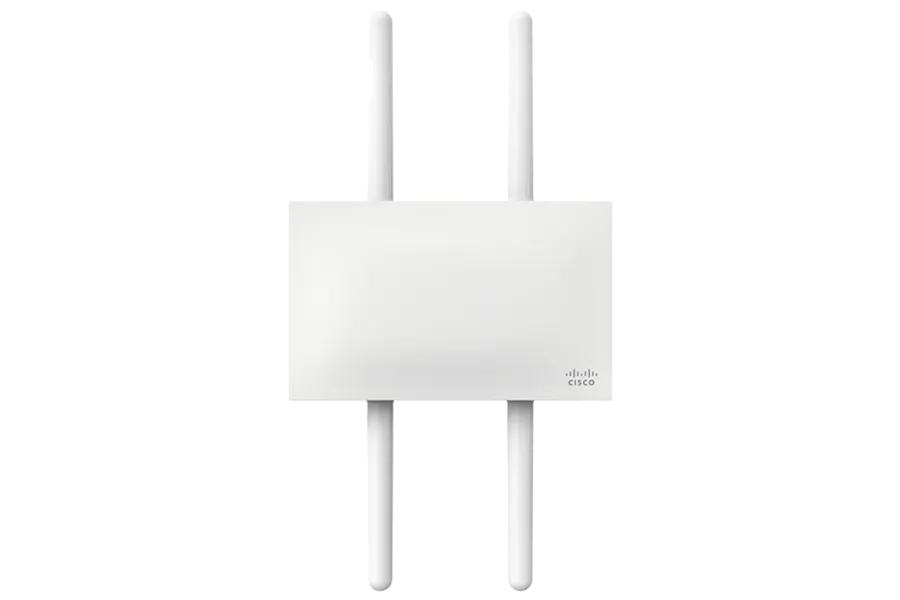

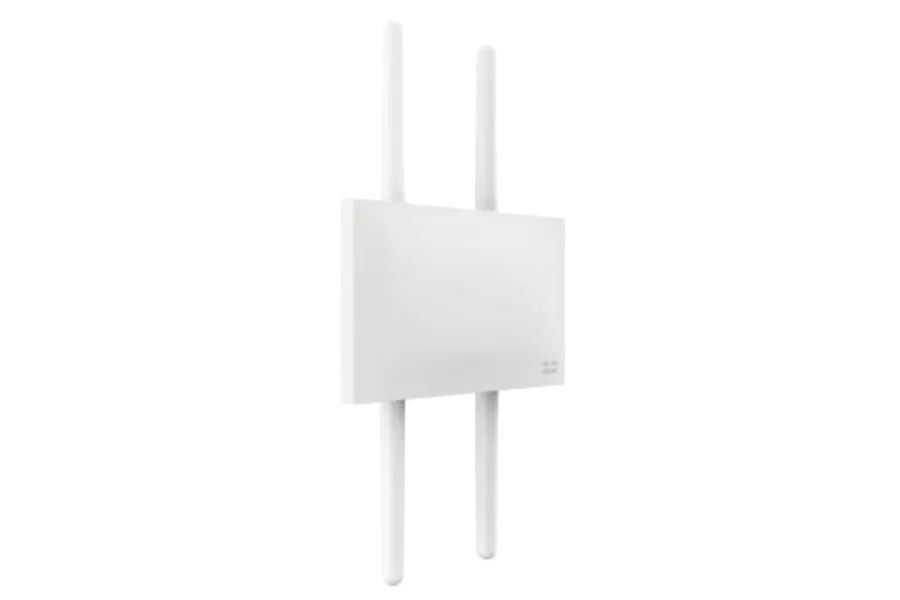

Cisco Meraki MR74 - Wireless Access Point

Highlights

Ideal use cases

• Harsh, industrial, and outdoor environments
• Voice, video, and performance-intensive networks

Hardware features

• IP67 rated: tested for dust, shock, vibration, and moisture
• 4 radios: 2.4 GHz, 5 GHz, dual-band WIDS/WIPS, and Bluetooth? Low Energy
• 2-stream 802.11ac Wave 2 MU-MIMO and 802.11n, up to 1.3 Gbps
• Gigabit Ethernet port, 802.3af PoE compatible

Cloud management

• Network-wide visibility and control
• Self-provisioning for rapid deployment
• Automatic reporting
• Seamless firmware updates

Enterprise security

• 802.1X and native Active Directory integration
• Air Marshal: real-time WIPS with forensics
• Stateful Layer 3-7 firewall
• Identity-based group policies
• Built-in antivirus scan (NAC)
• Built-in Umbrella DNS Security*
• Adaptive Policy automated segmentation**

Guest access

• 1-click secure guest access
• Guest isolation firewall
• Customizable splash pages
• Integrated Facebook WiFi login

RF optimization

• Cloud-based RF planning
• Built-in spectrum analysis
• Dual-concurrent radios with band steering

Layer 7 traffic shaping

• Classifies hundreds of applications
• Create per-application bandwidth limits
• Prioritize productivity apps
• Restrict recreational traffic

Location Analytics

• Measure visitor capture rate, visit length, and repeat visit rate
• Measure visitor trends over time and compare performance across locations
• Enable location services through integrated iBeacon functionality

Device management

• Create device-specific firewall rules
• Deploy applications and updates
• Troubleshoot issues with built-in RDP

Mesh

• Self-configuring, self-optimizing mesh
• High performance multi-radio routing protocols
• Extends coverage to hard-to-wire areas
• Self-heals after cable or switch failures

Specifications

Radios

• One 802.11b/g/n, one 802.11ac/a/n radio, and one dedicated for dual-band WIPS & spectrum analysis
• Concurrent operation of all three radios
• Max data rate 1.2 Gbit/s
• Integrated Bluetooth Low Energy radio (concurrent to WiFi radios)
• Operating Bands
• FCC (US)
  • 2.412-2.484 GHz
  • 5.150-5.250 GHz (UNII-1)
  • 5.725-5.825 GHz (UNII-3)
  • EU (Europe)
  • 2.412-2.484 GHz
  • 5.150-5.250 GHz (UNII-1)
  • 5.250-5.350, 5.470-5.600 GHz, 5.650-5.725 GHz (UNII-2e)

802.11ac & 802.11n Capabilities

• 2x2 multiple input, multiple output (MIMO) with two spatial streams
• Maximal ratio combining (MRC)
• Beamforming
• 20, 40, and 80 MHz (802.11ac), 20 and 40 MHz channels (802.11n)
• Packet aggregation
• Cyclic shift diversity (CSD) support

Power

• Power over Ethernet: 24 - 57 V (802.3af compatible)
• Power consumption: 13.87 W max
• Power over Ethernet injector sold separately

Mounting

• Mounts to walls and horizontal, vertical, and angled poles
• Mounting hardware included

Physical Security

• Security screw included
• Anti-tamper cable bay
• Concealed mount plate

Environment

• Operating temperature: -40°F to 131°F (-40°C to 55°C)
• IP67 environmental rating (sealed against water and dust)

Physical Dimensions

• 10.1” x 6.22” x 3.3” (256 mm x 158 mm x 83 mm) not including mount
• Weight: 3.1 lb (1.4 kg)

Interfaces

• One 100/1000 Mbps auto-crossover Ethernet port
• Four external N-type connectors (note: antennas sold separately)
• 1 power/booting/firmware upgrade status

Security

• Integrated policy firewall (Identity Policy Manager)
• Air Marshal: real-time WIPS with forensics
• Guest Isolation
• WEP, WPA
• WPA2-PSK
• WPA2-Enterprise with 802.1X
• TKIP and AES encryption
• VLAN tagging (802.1Q)
• Quality of Service
• Advanced Power Save (U-APSD)
• DSCP (802.1p)

Mobility

• PMK and OKC credential support for fast Layer 2 roaming
• 802.11r and 802.11k
• L3 roaming
• LED Indicators
• 4 signal strength
• 1 Ethernet connectivity
• 1 power/booting/firmware upgrade status

Regulatory

• RoHS

Warranty

• 1 year hardware warranty with advanced replacement included

Ordering Information

• MR74-HW Meraki MR74 Cloud-Managed Access Point
• MA-INJ-4-US Meraki 802.3at Power over Ethernet Injector (US Plug)
• MA-INJ-4-EU Meraki 802.3at Power over Ethernet Injector (EU Plug)
• MA-INJ-4-UK Meraki 802.3at Power over Ethernet Injector (UK Plug)
• MA-INJ-4-AU Meraki 802.3at Power over Ethernet Injector (AU Plug)
• MA-ANT-20 Meraki Dual–Band 4 - 7 dBi Omni Antenna, N-Type, Set of 2
• MA-ANT-21 Meraki 5 GHz Sector Antenna, 13 dBi, N-Type
• MA-ANT-23 Meraki 2.4 GHz Sector Antenna, 11 dBi, N-Type
• MA-ANT-25 Meraki Dual–Band Patch Antenna, 8 / 6.5 dBi, N-Type
• MA-ANT-27 Meraki Dual–Band Sector Antenna, 9 / 12 dBi, N-Type
