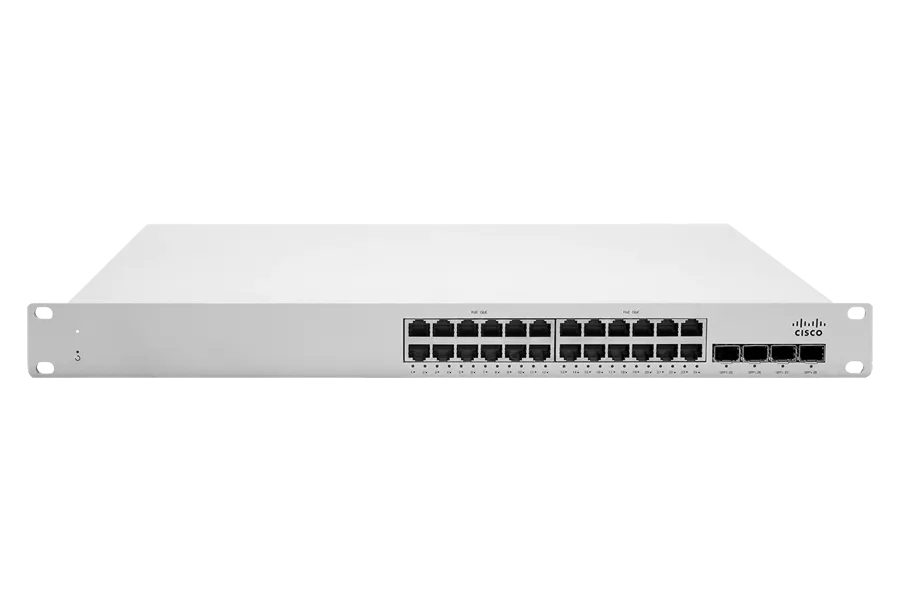

Cisco Meraki MS225-24 - Stackable Access Switch

Cloud-Managed Stackable Switching Designed for the Branch

Category : Cisco Switches
Brand : Cisco
Model : MS225-24

Description

Highlights

Switch ports/stacking ports

  • 24 × 1G port models
  • 4 × 10G SFP+ uplinks
  • Stacking capable with MS210
  • Stack up to 8 units
  • 80 Gbps of physical stacking

Power/PoE

  • Unpowered model
  • MS225-24P includes 370W
  • Up to 30W per port
  • Supports Cisco redundant power system (RPS2300)

Hardware platform

  • Reliable platform with 24/7 Meraki Support
  • 1RU rack mountable
  • Low noise, fanless model available
  • Voice and video QoS
  • Noise-blocking switch fabric

Cloud management

  • Email alerts for switch management
  • Remote troubleshooting tools
  • Manage ports from a GUI-based dashboard
  • Zero-touch provisioning
  • Per-port and per-client usage statistics
  • Secure, user-scheduled firmware updates

Switching capabilities

  • Layer 2 with Static Routes
  • Warm spare redundancy (VRRP)
  • DHCP Relay
  • 802.1X Authentication
  • DHCP Snooping
  • STP Enhancements
  • IPv4 and IPv6 ACLs


SPECIFICATIONS

Interfaces

  • 24 × 10/100/1000BASE-T Ethernet (RJ45)
  • 4 × 10G SFP+ ports for uplinks
  • 2 × stacking interfaces
  • Auto negotiation and crossover detection

Management

  • Managed via the Web with the Meraki cloud management platform
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • Operating system, device, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control

Remote Diagnostics

  • Email, SMS and Mobile push notification alerts
  • Ping, traceroute, cable testing, and link failure detection with alerting
  • Remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search

Stacking

  • Physical stacking of up to 8 switches with 160 Gbps stack bandwidth on all models
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet Switching Capabilities

  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC forwarding entries: 16K

Security

  • Integrated multi-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate-wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Port security: Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking, Dynamic ARP Inspection
  • IPv4 and IPv6 ACLs

Performance

  • Switching capacity: 128 Gbps
  • Forwarding rate: 95.24 mpps
  • Jumbo frame support (9600 byte Ethernet frame)
  • Flow control support

Layer 3

  • Static Routing
  • Warm Spare (VRRP)
  • DHCP Relay

Power

  • Power input: 100-240 VAC, 47-63 Hz
  • MS225-24: 15-24 W max, fanless
  • MS225-24P: 21-448 W max
  • 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) available on all ports (maximum of 30W per port for PoE+) for powered switches

Mounting

  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available

Environment

  • Operating temperature: -5°C to 50°C
  • Humidity: 5 to 95% non-condensing
  • Variable speed fans

Regulatory

  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
  • For international availability, please contact sales@meraki.com

Warranty

  • Full lifetime hardware warranty with next-day advanced replacement included
  • MTBF at 25°C
  • MS225-24-HW: 590,165
  • MS225-24P-HW: 391,648

Physical Specifications (H × W × D)

  • MS225-24-HW
  • 1.72 × 19.08 × 9.84” (4.38 × 48.46 × 25cm)
  • 6.03 lb (2.73 kg)
  • MS225-24P-HW
  • 1.72 × 19.08 × 9.84” (4.38 × 48.46 × 25cm)
  • 8.18 lb (3.71 kg)
