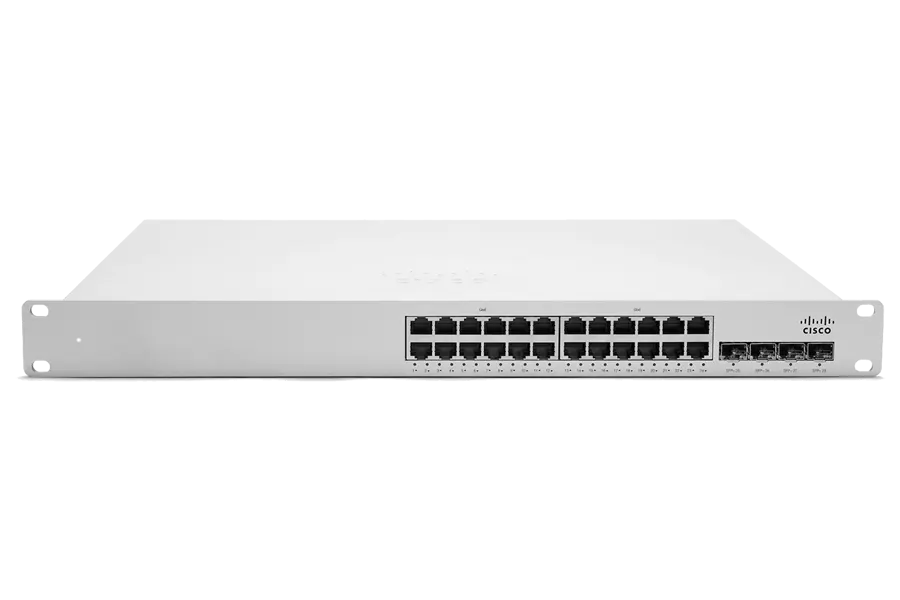

Cisco Meraki MS350-24 - Stackable Access Switch

Highlights

Switch ports/stacking ports

• 24 × 1G port models
• 4 × 10G SFP+ uplinks
• Stack up to 8 units
• 160 Gbps of physical stacking

Power/PoE

• Unpowered model
• MS350-24P includes 370W
• Up to 30W per port
• Modular power supply/fans

Hardware platform

• Reliable platform with 24/7 Meraki Support
• 1RU rack mountable
• Voice and video QoS
• Non-blocking switch fabric

Cloud management

• Email alerts for switch management
• Remote troubleshooting tools
• Manage ports from a GUI-based dashboard
• Zero-touch provisioning
• Per-port and per-client usage statistics
• Secure, user-scheduled firmware updates

Switching capabilities

• Layer 3
• Warm spare redundanc (VRRP)
• OSPF Routing
• MAC forwarding entries, up to 96K
• DHCP Server, DHCP Relay
• 802.1X Authentication
• DHCP Snooping
• STP Enhancements
• IPv4 and IPv6 ACLs

Specifications

Interfaces

• 24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
• 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS350-24P model, available on all ports (maximum of 30W per port for PoE+)
• 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
• 2 × Stacking interfaces
• Auto negotiation and crossover detection

Ethernet Switching Capabilities

• 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
• 802.1Q VLAN tagging with 4,094 addressable tags
• 802.1D Spanning Tree Protocol (RSTP, STP)
• 802.1ab Link Layer Discovery Protocol (LLDP)
• 802.3ad link aggregation with up to 8 ports per aggregate

Broadcast storm control

• IGMP snooping for multicast filtering
• MAC forwarding table entries: 96,000

Security

• Integrated two-factor authentication for Dashboard management
• Role-based access control (RBAC) with granular device and configuration control
• Corporate-wide password policy enforcement
• IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
• Multi-Domain/Multi-Host/Multi Authentication
• Port security: Sticky MAC, MAC whitelisting
• DHCP snooping, detection and blocking, Dynamic ARP Inspection
• STP Enhancements: BPDU guard, Root guard, Loop guard
• IPv4 and IPv6 ACLs

Performance

• Non-blocking fabric
• 128 Gbps non-blocking switching capacity
• 2.5 microsecond latency

Power over Ethernet (MS350-24P):

• 802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port
• Maximum PoE output: 370 W
• PoE available on all ports simultaneously
• Pre-standard PoE: supports pre-standard PoE devices

Management

• Managed via the cloud using the Meraki dashboard
• Integrated with Meraki wireless, routing, and firewall management
• No-touch remote deployment (no staging needed)
• Detailed historical per-port and per-client usage statistics
• DHCP and hostname fingerprinting
• SNMP v2c
• Seamless over-the-web firmware upgrades

Remote Diagnostics

• Email and text alerts
• Live remote packet capture
• Aggregated event logs with instant search

Stacking

• Unified configuration and monitoring of all switches
• Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
• Physically stack up to 8 switches for added resiliency in high-throughput environments

Layer 3 Capabilities

• Static routing
• Dynamic routing (OSPFv2)
• DHCP Server and Relay
• Warm spare (VRRP) with DHCP Failover

Power

• Power input: 100-240 VAC, 47-63 Hz
• Power consumption
  • MS350-24: 56-66 W max
  • MS350-24P: 58-466 W max

Environment

• Operating temperature: 0°C to 45°C
• Humidity: 5 to 95% non-condensing
• Variable speed fans

MTBF (at 25°C)

• MS350-24: 808,000 hours
• MS350-24P: 568,000 hours

Warranty

• Lifetime hardware warranty with advanced replacement included

Physical Specifications (H × W × D)

• MS350-24
  • 1.74" × 19.1" × 20.4" (4.44 × 48.6 × 51.8 cm) with power supply fitted
  • Weight: 12.37 lb (5.61 kg)
• MS350-24P
  • 1.74" × 19.1" × 20.4" (4.44 × 48.6 × 51.8 cm) with power supply fitted
  • Weight: 13.14 lb (5.96 kg)
