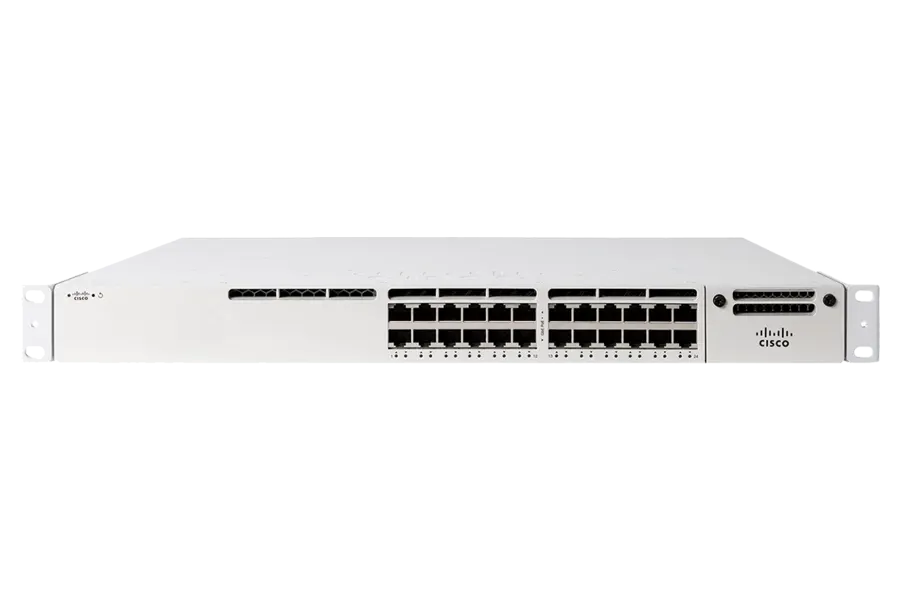

Cisco Meraki MS390-24 - Stackable Access Switch

Highlights

Switch ports/stacking ports

• MS390-24: 24 x 1GbE
• MS390-24P: 24 x 1GbE PoE+
• MS390-24U: 24 x 1GbE UPoE
• MS390-24UX: 24 x mGbE UPoE
• 2 × 40G or 4/8 × 10G modular fiber uplinks
• Stack up to 8 units
• 480 Gbps of physical stacking

Power/PoE

• All models include a power supply
• Modular power supply/fans
• StackPower

Hardware platform

• Reliable platform with 24/7 Meraki Support
• 1RU rack mountable
• Flexible mounting options
• Non-blocking switch fabric

Cloud management

• Email alerts for switch management
• Remote troubleshooting tools
• Manage ports from a GUI-based dashboard
• Zero-touch provisioning
• Per-port and per-client usage statistics
• Secure, user-scheduled firmware updates

Switching capabilities

• Layer 3
• OSPF Routing
• MAC forwarding entries, up to 32K
• DHCP Server, DHCP Relay
• 802.1X Authentication
• DHCP Snooping
• STP Enhancements
• IPv4 and IPv6 ACLs
• Adaptive Policy*

Specifications

Interfaces

• 24 × 100/1/2.5/5/10G Ethernet (RJ45)
• 4/8 × 10G SFP+ uplink modules
• 2 × 40G QSFP uplink modules
• Auto-negotiation and crossover detection
• 2 × dedicated stacking ports

Management

• Managed via the Web with the Meraki cloud management platform
• Integrated with Meraki wireless and complete portfolio of IT products and solutions
• Zero-touch remote provisioning (no staging needed)
• Detailed historical per-port and per-client usage statistics
• Operating system, device, and hostname fingerprinting
• SNMP and SYSLOG support for integration with other network management solutions
• Automatic firmware upgrades with scheduling control

Remote Diagnostics

• Email, SMS, and Mobile push notification alerts
• Ping, traceroute, cable testing, and link failure detection with alerting
• Remote packet capture
• Dynamic and interactive network discovery and topology
• Combined event and configuration change logs with instant search

Stacking

• Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet Switching Capabilities

• 802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled)
• Single instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST)
• STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
• Broadcast storm control
• 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
• 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
• Port mirroring
• IGMP snooping for multicast filtering
• MAC forwarding entries: 32K

Security

• Integrated multi-factor authentication for cloud management platform
• Role-based access control (RBAC) with granular device and configuration control
• Corporate-wide password policy enforcement
• IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
• Single-Host/Multi-Domain/Multi-Host/Multi Authentication
• Port security: Sticky MAC, MAC whitelisting
• DHCP snooping, detection and blocking
• IPv4 and IPv6 ACLs

Adaptive Policy

• Software feature exclusively on the MS390 to provide an additional layer of security based on the intent of the user, device, and application.

SecureConnect

• SecureConnect enables MS210 and above to detect and verify that the MR connected to a port belongs to the same organization and then automatically configure it.

Performance

• Switching capacity: MS390-24:154.76 Mpps,MS390-24P:154.76 Mpps,MS390-24U:154.76 Mpps,MS390-24UX:476.19 Mpps
• Forwarding rate: MS390-24: 155 Mpps,MS390-24P: 155 Mpps, MS390-24U: 155 Mpps, MS390-24UX: 476.19 Mpps
• Jumbo frame support (9600 byte Ethernet frame)
• Flow control
• Stacking bandwidth of 480 Gbps

Layer 3 Capabilities

• Static routing, OSPFv2 (with support for up to 16 ECMP Routes)
• Multicast routing [PIM-ASM]
• Warm spare (VRRP)
• DHCP Relay, DHCP Server

Power

• Power input: 100-240V~, 50-60Hz
• Power consumption
  • MS390-24-HW: 79.2 / 99 W (idle/max)
  • MS390-24P-HW: 84.1 / 554.4 W (idle/max)
  • MS390-24U-HW: 85.4 / 990.3 W (idle/max)
  • MS390-24UX-HW: 162.7 / 809.9 W (idle/max)
  • StackPower supported on all models

Mounting

• 1U Rack-mountable with included rack mount hardware
• 2/4-post mounting options available

Environment

• Operating temperature: 0°C to 45°C
• Humidity: 5 to 95% Relative Humidity
• Variable speed fans
• Regulatory (For international availability, please contact sales@meraki.com)
• FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A, CNS13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 61000-3-2, EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317

Safety Compliance

• CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1

Warranty

• Full lifetime hardware warranty with next-day advanced replacement included

MTBF at 25°C

• MS390-24-HW: 314,790
• MS390-24P-HW: 299,000
• MS390-24U-HW: 238,410
• MS390-24UX-HW: 214,760

Physical Specifications (H × W × D)

• MS390-24-HW
• 1.73” × 17.5” × 17.7” (4.4 × 44.5 × 44.9cm)
• Weight: 16.03 lb (7.27 kg)
• MS390-24P-HW
• 1.73” × 17.5” × 17.7” (4.4 × 44.5 × 44.9cm)
• Weight: 16.33 lb (7.4 kg)
• MS390-24U-HW
• 1.73” × 17.5” × 19.2”(4.4 × 44.5 × 44.8cm)
• Weight: 16.63 lb (7.54 kg)
• MS390-24UX-HW
• 1.73” × 17.5” × 20.2” (4.4 × 44.5 × 51.3cm)
• Weight: 18.18 lb (8.25 kg)
