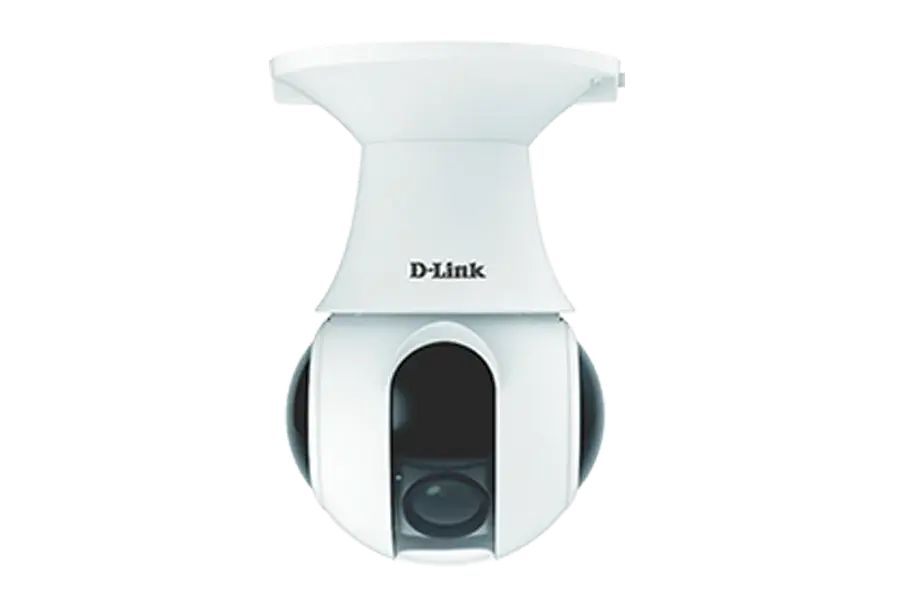

D-Link 12X 3MP High Speed Dome Network Camera DCS-F6123

D-Link 12X 3MP High Speed Dome Network Camera DCS-F6123

Category : D-link Accessories
Brand : D-Link
Model : DCS-F6123

Description

  • 1 /2.8”progressive Scan CMOS Sensor
  • 2048 X 1536 @ 25fps
  • Auto Focus Zoom lens : 4.7 to 56.4mm
  • 12X Optical Zoom & 16X Digital Zoom
  • -40 to 60 deg wide temperature control
  • Smart IR upto 100m
  • Smart defog
  • Region of Interest
  • Audio/Alarm support
  • SD/ SDHC/ SDXC Slot, max 64GB

Specifications

Camera

  • Camera Hardware Profile :
    • 1/2.8”progressive Scan CMOSsensor
    • 4.7~56.4mm auto focus zoom lens
    • Minimum illumination 0.01 Lux (Color); 0.001 Lux (B/W), IR ON 0 Lux<
    • Built-in Infrared-Cut Removable (ICR) Filter<
    • 100 meter IR illumination distance<
    • 12x optical zoom, 16x digital zoom
    • Aperture F1.2 - F3.2<
    • Angle of View<
    • (H) 69.7° to 7.56°<
    • (V) 21.4° to 3.27°<
    • Shutter Speed 1/1 to 1/10,000 sec.
  • Camera Housing : IP66 compliant weatherproof housing
  • PTZ Hardware Profile :
    • Pan travel: 360° endless
    • Track: 6
    • Tilt travel: -10° to 90°
    • Cruise Paths: 12
    • Presets: 300 points
    • Pan and tilt speed proportional to zoom ratio
    • Preset Accuracy
    • Resume after power loss
    • Tilt Speed: 0.01 to 90°/s
    • 3D Positioning
    • Pan Speed: 0.01° to 180°/s
    • Scan: 12
    • Tilt Preset Speed: 90°/s
    • Pan Preset Speed: 180°/s
  • Image Features :
    • Configurable image size, quality, frame rate, VBR/CBR (500kbps ~ 12 Mbps)
    • Configurable privacy masks total zones
    • Configurable exposure, Brightness, sSaturation, Contrast, Sharpness, White balance, Rotate mode, Corridor mode
    • Time stamp and text overlays<
    • Customized text overlay
    •  Digital Noise reduction with 2D and 3D technology
    •  Image Enhancement with WDR, HLC, ROI,Defog<
    •  No. of zones configurable for ROI : 8
  • Video Compression :
    • H.264 High/Main/Baseline Profile, MJPEG
    • JPEG for still images
    • 2048(H) ×1536(V)/25 FPS
  • Video Resolution :
    • Stream 1: 2048(H) ×1536(V)
    • Stream 2: 1080P/720P/D1/CIF/QCIF/VGA/QVGA/640x360
  • Audio Support : G.711, RAW_PCM
  • Frame Rate : Selectable upto 30 FPS
  • Vandal Proof (IK-10) : Yes
  • External Device Interfaces
    • 1 Ethernet (10/100 Base-T) RJ-45 Connector
    • Reset Button
    • 1ch Audio In,1ch Audio Out
    • Micro SD/SDHC/SDXC slot (Built-in), Max 64GB
    • 2ch Alarm In,1ch Alarm Out

Network

  • Network Protocols :
    • IPv4
    • DDNS Client
    • IPv6
    • SMTP
    • TCP/IP
    • HTTP/HTTPS
    • UDP
    • PPPoE
    • ICMP
    • UPnP
    • DHCP Client
    • RTP/RTSP
    • NTP Client
    • Multicast
    • DNS Client
    • ONVIF compliant
  • Security
    • Administrator and user group protection
    • HTTP and RTSP authentication
    • Remote client access control
    • HTTPS encryption for web access hardware watchdog

System Management

    • System Requirements for Web Interface
      • IE 11 ,Chrome ,Firefox
    • Event Management
      • Motion detection, Video Loss, Port Alarm
      • Event notification and upload snapshots/video clips via e-mail
      • Alerts to SMTP client
      • Multiple event notification only on mails
    • Remote Management :
      • Configuration interface accessible via web browser
      • Take snapshots
    • OS and Mobile Support :
      • Operating System:Windows 7/8/XP/Vista/2000 and higher
      • Android
    • DCMS System Requirement
      • Operating System: 32 Bits - MSWindows XP pro SP3/Visa SPI/Win 7 SPI/Win10
      • 64 bits - Win 7 SPI/Win Server 2008 R2
    • DCMS Software Function : Control and manage up to 64 channels

    General

    • Weight : 1.5kg
    • Protection :
      • TVS4000V Lightning Protection
      • Surge Protection
    • Power Input : Standard DC12V/POE+, Optional AC24V
    • Max.Power Consumption : Max 25W
    • Operating Temperature : Working Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
    • Humidity : Operating: 0% ~ 90% RH
    • Certification : CE & FCC
    • Dimension : 321.3x222.3x146.6 mm

    Order Information

    • DCS-F6123 : 12X 3MP High Speed Dome Network Camera
