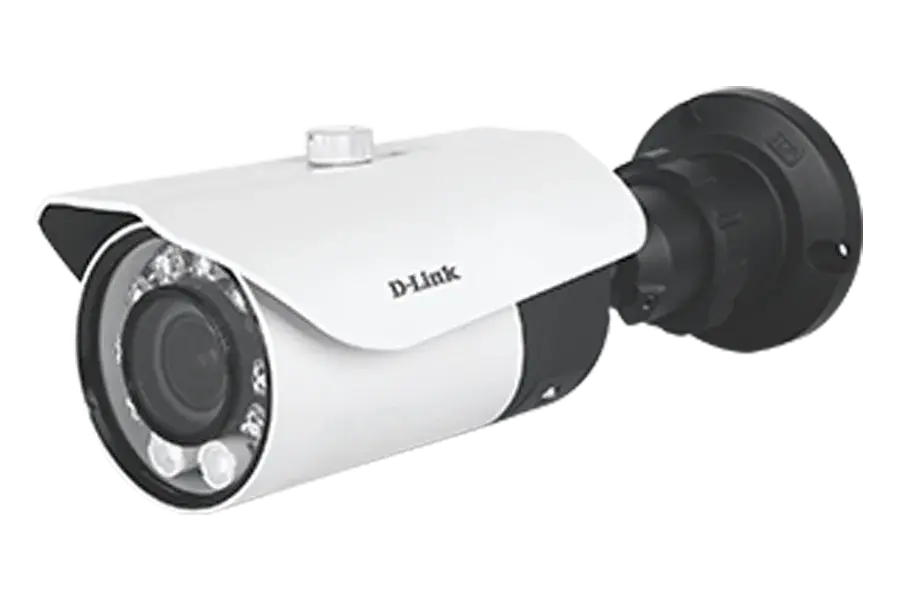

D-Link 4MP Day & Night Outdoor Varifocal Bullet Network Camera DCS-F4724

Category : D-link Accessories

Brand : D-Link

Model : DCS-F4724

Enquiry Us Contact Now

Camera Specification

Camera Hardware Profile
- 1 /3" 4 MP Progressive Scan ExMor CMOS Megapixel
- Focal Length: Motorized lens 2.8-12mm
- Up to 25 meter IR illumination distance
- Aperture : F2.2
- Built-in Infrared-Cut Removable (ICR) Filter module,Smart IR support
- Angle of view
- (H) 90° ~ 35°
- (V) 48° ~ 20°
- Minimum illumination: Color 0.05Lux; IR ON 0 Lux
- Shutter Speed: 1/5-1/20000<
- Minimum object distance : 0.3m
- Digital zoom : 10x
Camera Housing
- IP66 compliant weatherproof housing
- Included sunshield
Image Features
- Configurable image size, quality, frame rate, VBR/CBR(500kbps ~ 12 Mbps)
- Configurable privacy mask zones :Total zones 4
- Time stamp and text overlays
- Customized text overlay
- Digital Noise reduction with 2D and 3D technology
- No. of zones configurable for ROI : 8
- Configurable Exposure, Brightness, Saturation, Contrast, Sharpness, White Balance, Rotate mode, Corridor mode
- Image Enhancement with WDR, HLC, BLC
Video Compression
- Simultaneous H.264/ H.265, MJPEG
- H.264 / H.265multicast streaming
- JPEG for still images
Video Resolution
- Main Stream:2592x1520 / 2560x1440 / 2304x1296 /192
- Second Stream:D1 to QVGA
Frame Rate
- Selectable upto 30 FPS
External Device Interfaces
- 10/100 BASET- X Ethernet port with PoE
- 1ch Audio in & 1ch Audio out
- BNC Output
- Micro SD/ SDHC/ SDXC, Slot max 128GB

Network

Network Protocols
- IPv6
- SMTP client
- IPv4
- HTTP/HTTPS
- TCP/IP
- PPPoE
- UDP/IP
- UPnP
- ICMP
- RTSP
- DHCP client
- Multicast
- NTP client
- ONVIF compliant
- DNS client
- DDNS client
Security
- Administrator and user group protection
- HTTP and RTSP authentication
- Remote client access control
- HTTPS encryption for web access hardware watchdog

System Management

System Requirements for Web Interface : IE 11, Chrome, Firefox
Event Management
- Motion detection, Video Loss, Port Alarm
- Alerts to SMTP client
- Event notification and uploading of snapshots via e-mail
- Multiple event notifications only on mails
Remote Management
- Configuration interface accessible via web browser
- Take snapshots
OS and Mobile Support
- Windows 7/8/XP/Vista/2000 and higher
- Android
DCMS System Requirement
- Operating System: 32 Bits - MSWindows XP pro SP3/Visa SPI/Win 7 SPI/Win10 64 bits - Win 7 SPI/Win Server 2008 R2
DCMS Software Function
- Control and manage up to 64 channels

General

Order Information

Optional Accessory
