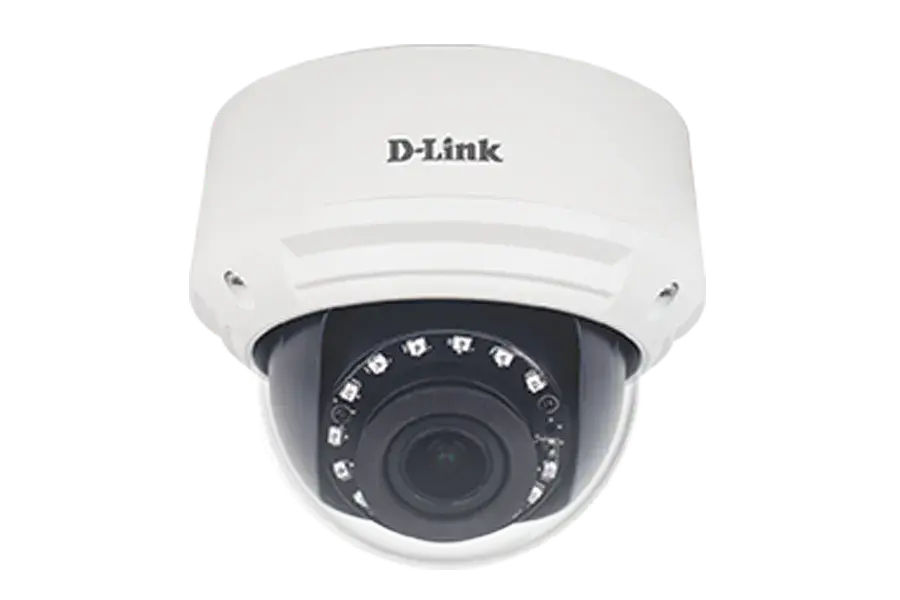

D-Link 4MP Day & Night Outdoor Varifocal Dome Network Camera DCS-F4624

• 4MP Full HD Camera
• 1920 X 1080 @30fps
• IR distance up to 20m
• Varifocal lens 2.8-12mm
• Outdoor application - IP66
• Corridor mode
• Smart de-fog
• Region of Interest
• SD/SDHC/SDXC Slot, max 64GB
• Audio Support
• Alarm Port
• IK-10

Specifications

Camera Specification

• Camera Hardware Profile
  • 1/2.9”2MP Progressive Scan CMOS
  • Focal Length: Varifocal lens 2.8-12mm
  • Up to 20 meter IR illumination distance
  • Aperture : F2.2
  • Built-in Infrared-Cut Removable (ICR) Filter module,Smart IR support
  • Angle of view:
  • (H) 90° ~ 35°
  • (V) 48° ~ 20°
  • Minimum illumination: Color 0.01Lux; IR ON 0 Lux
  • Shutter Speed: 1/5-1/20000
  • Minimum object distance : 0.3m
  • Digital zoom : 10x
• Camera Housing
  • IP66 compliant weatherproof housing
• Image Features
  • Configurable image size, quality, frame rate, VBR/CBR (500kbps ~ 12 Mbps)
  • Configurable privacy mask zones :Total zones 4
  • Time stamp and text overlays
  • Customized text overlay
  • Digital Noise reduction with 2D and 3D technology
  • No. of zones configurable for ROI : 8
  • Configurable Exposure, Brightness, Saturation, Contrast, Sharpness, White Balance, Rotate mode, Corridor mode
  • Image Enhancement with WDR, HLC, BLC sion • JPEG for still images
• Video Compression
  • Simultaneous H.264 (BP/MP/HP) /MJPEG format compres
  • H.264 multicast streaming
• Video Resolution
  • Main Stream :1920x1080/ 1280x960 / 1280x720
  • Second Stream : D1 to QVGA
• Frame Rate : Selectable up to 30 FPS
• Vandal Proof (IK-10) : Yes
• External Device Interfaces
  • 10/100 BASET- X Ethernet port with PoE
  • 1ch Audio in & 1ch Audio out
  • 1ch Alarm in & 1ch Alarm out
  • BNC Output
  • Micro SD/ SDHC/ SDXC Slot, max 64GB

Network

• Network Protocols
  • IPv6
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client
  • DNS client
  • SMTP client
  • HTTP/HTTPS
  • PPPoE
  • UPnP
  • RTP/RTSP
  • Multicast
  • ONVIF compliant
  • DDNS client
• Security
  • HTTP and RTSP authentication
  • HTTPS encryption for web access hardware watchdog
  • Administrator and user group protection
  • Remote client access control

System Management

• System Requirements for Web Interface
  • IE 11, Chrome, Firefox
• Event Management
  • Motion detection, Video Loss
  • Alerts to SMTP client
  • Event notification and uploading of snapshots via e-mail
  • Multiple event notifications only on mails
• Remote Management
  • Configuration interface accessible via web browser
  • Take snapshots
• OS and Mobile Support
  • Windows 7/8/XP/Vista/2000 and higher
  • Android
• DCMS System Requirement
  • Operating System:Windows 7/8/XP/Vista/2000 and higher
• DCMS Software Function
  • Control and manage up to 64 channels

General

• Weight : 900g
• Power : DC 12V /PoE
• Power Consumption : 3W (IR LED OFF)5; W (IR LED ON)
• Temperature : Operating: -40°C ~ 60°C
• Humidity : Operating: 0% ~ 90% RH
• Certification : CE & FCC
• Dimension : 130×112mm

Order Information

• DCS-F4622 : 2MP Full HD Day & Night Varifocal Outdoor Dome Network Camera
• Optional Accessory
• DCS-FCA623 : PendaOunt Mount
• DCS-FCA633 : Back box
• DCS-FCA624 : Wall Mount (Junction box / Corner mount bracket / Pole mount bracket)
• DCS-FCA633B : Back Box
