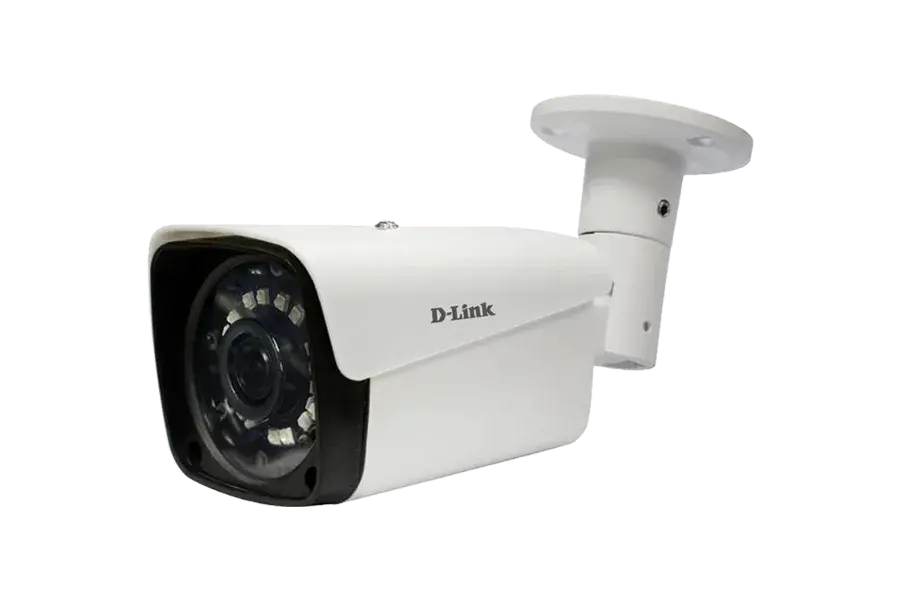

D-Link 4MP Fixed IP Bullet Camera DCS-F5714-L1

• 1/2.7" Progressive scan CMOS Sensor
• 3.6mm Fixed lens
• Up to 2560 x 1440 Full HD resolution
• IR Range up to 30 Mtr.
• DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Support Defog, ROI, BLC, HLC UPnP-TM
• Support smart functions
• Support dual stream

Specifications

CAMERA

• Image Sensor : 1/2.7" Progressive scan CMOS Progressive
• Min. Illumination : 0.01lux (Color), 0lux (IR on)
• Shutter Time : Auto/Manual, 1/3~1/10000s
• Lens : 3.6 mm@F2.0: horizontal FOV: 86°, vertical FOV:64.5°
• Lens Mount : M12
• Day/Night : IR cut filter with auto switch
• Wide Dynamic Range : DWDR
• Max. IR LEDs Length : 30M
• Smart IR : Support

COMPRESSION STANDARD

• Video Compression : H.264/H.264+/H.265/H.265+
• H.264 Codec profile : Base/Main/High profile
• H.265 Codec profile : Main profile
• Video Bit Rate : 11 Kbps ~ 8Mbps


• Max. resolution : 4MP (2560×1440)
• Main Stream : 50Hz: 20fps 4MP(2560 × 1440), 25fps 3MP(2048 × 1536), 25fps 1080P(1920 × 1080), 25fps 960P(1280 × 960) 60Hz: 20fps 4MP(2560 × 1440), 30fps 3MP(2048 × 1536), 30fps 1080P(1920 × 1080), 30fps 960P(1280 × 960)
• Sub Stream : 50Hz: 25fps D1(704 × 576),25fps CIF (352 × 288) 60Hz: 30fps D1(704 × 480),30fps CIF(352 × 240)
• Image Setting : Brightness/Contrast/Saturation/Hue/

Sharpness

• HLC : 50Hz:25fps CIF (352 × 288) 60Hz:30fps CIF (352 × 240)
• BLC : Support
• ROI : On/Off, zone configurable
• Defog : Support

NETWORK

• Event : Motion Detection, Video Shelter
• Smart Functions : Area Intrusion, Line crossing
• Protocols : TCP/IP,ICMP,HTTP,HTTPS,DHCP,DNS,DDNS,RTP, RTSP,RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P, Bonjour,IPV6
• System compatibility : Onvif 2.6, Profile S, CGI
• Security : User authentication, IP address filtering, Video mask
• Mobile Surveillance : iPhone, iPad, Android devices

INTERFACE

• Communication interface : 1 RJ45 10M / 100M Ethernet Port

GENERAL

• Operating Conditions : -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
• Power Supply : DC12V ± 10% )
• POE Supply : PoE (802.3af)
• Power Consumption : Max. 7W
• Weather Proof : IP66
• Dimensions : 187*64*64mm
• Weight (without HDD) : 300g
• Certification : CE, BIS

SYSTEM MANAGEMENT

• Mobile Software : D-Link Smart CCTV App
• Desktop Software : DSVS (D-Link Smart Video Surveillance)
• System Requirement for Web Interface : IE
