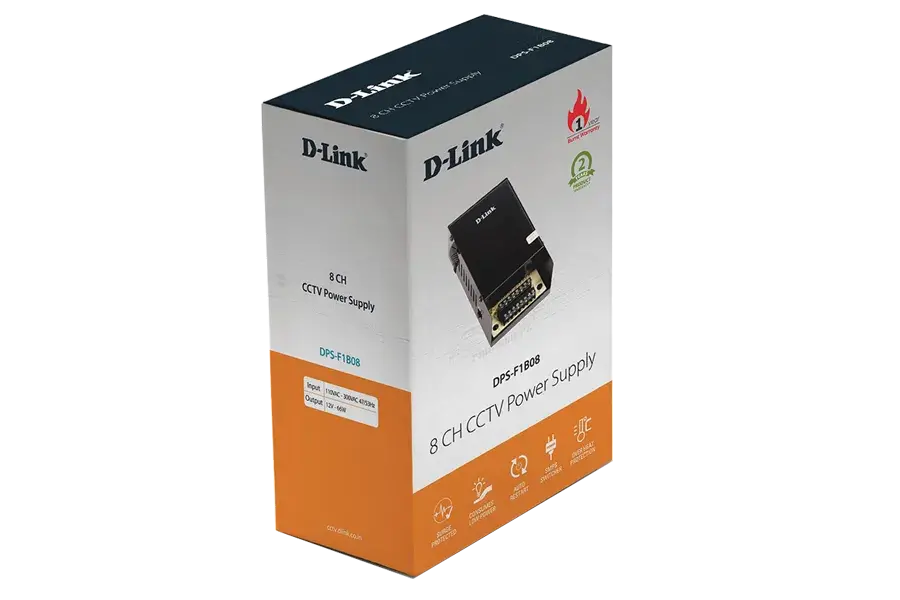

D-Link 8CH CCTV Power Supply DPS-F1B08

D-Link 8CH CCTV Power Supply DPS-F1B08

Category : D-link Accessories
Brand : D-Link
Model : DPS-F1B08

Description

Key Features

  • Highly Efficient & Consumes Low Power
  • Stabilized Output, Low Interference, Surge Protected
  • Over Heat & Voltage Protection
  • Highly Integrated SMPS Switcher I.C Design
  • Over Load Protection
  • Short Circuit Auto Restart
  • Input Voltage-110VAC-300VAC 47/53Hz
  • Output Voltage - 12V- 1 AMP max per channel

Specifications

  • Input Voltage Range : 110VAC~300VAC
  • Frequency : 47Hz - 53Hz
  • Output Voltage : 12.0 VDC
  • Output Current : Max 5.5A
  • Line Regulation : 1 1.40-12.60VDC
  • Setup Rise time : < 10 mSec. at 230VAC input.
  • Hold up time : > 10 mSec. at 110VAC Input
  • Inrush current : < 50A Peak @ 230VAC Cold start at 25 Deg.
  • Leakage Current : <0.25mA / 265VAC
  • Auto Reset : During over load and short circuit
  • Input over voltage Protection : The power supply is withstand upto 330VAC, without Interrupting
  • Over Load Protection : Auto restart
  • Ripple : <240mV
  • Surge protection : 4 KV
  • Efficiency : > 75% at all load conditions with complete AC input Operating Voltage (110VAC - 300VAC).
  • Housing : metallic cabinet Powder coating mat finish
  • Store Temperature : -15° to +70° C ambient
  • Working Humidity : 10 ~ 90% RH Non Condensing
  • Working Te mperature : 0ºC to +50ºC with 3.5A, +30ºC Deg with 4.0A
  • Dimension : L: 145mm, W: 80mm, H: 45mm
