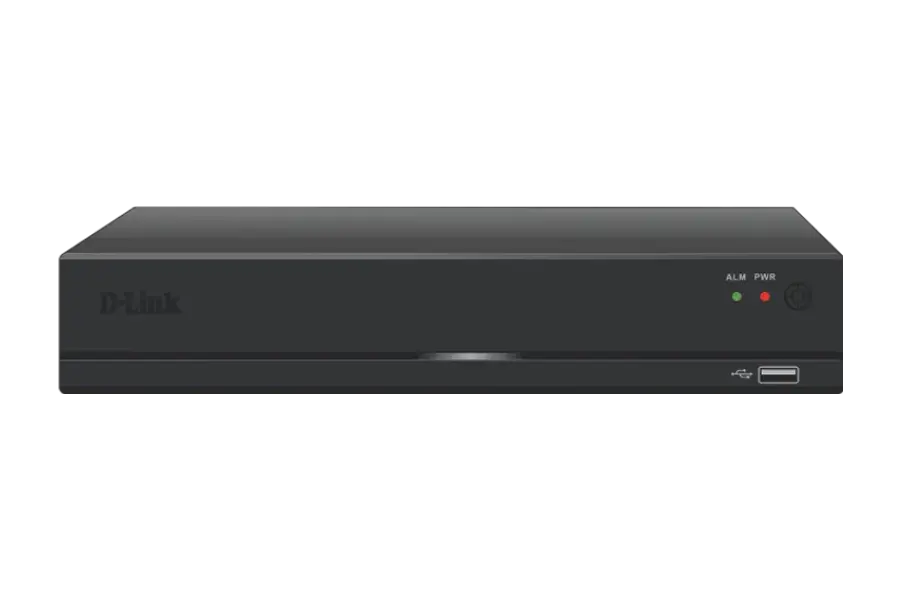

D-Link 8CH Network Video Recorder DNR-F5108-M5

• 8CH, 1 SATA NVR
• Support up to 5MP IPC
• Support H.265+/H.265/H.264+/H.264
• Support Smart Playback & Analytics
• Support 3G/4G Wi-Fi Connectivity
• Support Google Drive & Dropbox Cloud storage
• Support Onvif 2.6

Specifications

Video & Audio Input

• IP Video Input : 8ch
• Audio Input : N/A

Video & Audio Output

• HDMI : 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
• VGA : 1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
• Audio Output : N/A

Recording

• Compression : H.265+/H.265 /H.264+/H.264
• Resolution : 5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF

Playback & Backup

• Playback Mode : Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback
• Decoding Capability : 4CH@1080P(25fps)
• Backup Mode : USB Device/Network

Advanced Features

• Smart Detection : Line crossing, Area Intrusion, Fast moving, Unattached Object, Object Missing
• Smart Playback : Line Crossing/Area Intrusion /Motion Detection
• Cloud Storage : Support
• Cloud Upgrade : Support

Network

• Incoming Bandwidth : 40Mbps
• Outgoing Bandwidth : 20Mbps
• Ethernet : 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
• Network Compatibility : HTTP, HTTPS, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, DDNS, FTP, P2P, ONVIF 2.6
• Smart Phone : IOS (iPhone, iPad), Android (Phone, Pad)

Hard Disk

• SATA : 1 SATA interface
• Capacity : Up to 8TB capacity for each HDD

External Interface

• USB Interface
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0

General

• Power Supply : DC12V/1.5A
• Power Consumption : ?10W (without HDD)
• Working Environment : -10°C~+55°C / 10%~90%RH
• Dimension (W×D×H) : 250x230x45mm
• Weight : ?1.5Kg
• Certification : CE, BIS

System Management

• Mobile Software : D-Link Smart CCTV App
• Desktop Software : DSVS (D-Link Smart Video Surveillance)
• System Requirement for Web Interface : IE
