Dell Interactive Projector: S560

100” Full HD Projections, from inches away. Invite group collaboration with engaging ultra-short throw projections featuring Full HD, easy set-up and compatibility across multiple devices.

Category : Dell Projectors
Brand : Dell
Model : S560


100” Full HD Projections, from inches away.

Invite group collaboration with engaging ultra-short throw projections featuring Full HD, easy set-up and compatibility across multiple devices.

Impressive Full HD Resolution and advanced performance.

From classrooms to conference rooms, the S560 offers versatility and user-friendly features so you can keep audiences enthralled and interacting.

  • Project brilliantly: Full HD 1080p resolution, 3,400 ANSI lumens and a 16:9 aspect ratio means that text and images will be displayed with crystal clarity.
  • Full HD performance: Present content the way you designed it, with no downscaling or blurred images plus higher resolution that non-HD projectors.
  • Ultra-short throw: Unlike most standard projectors, the ultra-short throw performance allows you to place the S560 several inches from the screen. At approximately 11” away, you can create a 100” screen.
  • Reduced shadows: By placing the S560 close to the screen, you can reduce distracting shadows and other lights that take away from your presentation or lessons.
  • Superior sound: Two 10W integrated speakers provide high-performance audio for enhanced presentations.

Simple setup. Convenient connections.

Fast setup, user-friendly compatibility and wireless options make it easy to connect and start projecting from different devices. The S560 is easy to use, with or without the optional wall mount. Simply place the S560 on a tabletop and begin projecting.

  • Remote management: The RJ45 network port allows IT personnel to deliver support remotely. In addition, the S560 supports Creston RoomView – a free software that allows administrative support to closely monitor system and projector power status, lamp life, alerts and other vital statistics.
  • Wireless display: Project wirelessly via the optional Dell Wireless Module – WR517 (sold separately), or your preferred wireless dongle (ActionTec, Chromecast, also sold separately). The powered USB port (1.8 A) allows you to power your dongle without needing any extra power sockets.

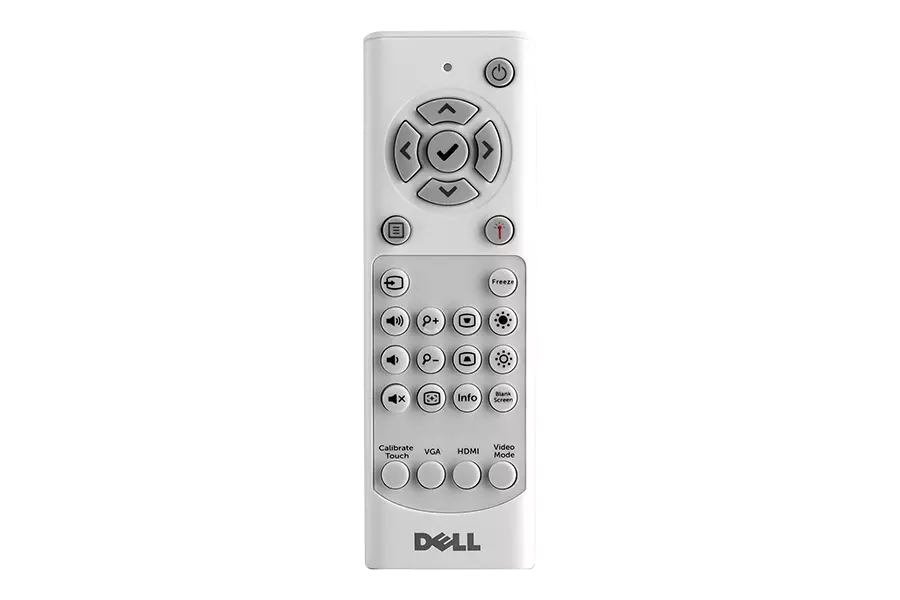

  • Ready to present: The S560 remote is packed with features to make presenting easy. It includes a built-in laser pointer, and allows you to pause or blank-out your presentation (even live video) with just a click of a button.
  • Flexible connection: Plug and play from multiple devices, allowing users with different systems to easily connect.

Advanced reliability and support.

Dell’s high standards and best-in-class reliability mean you can expect quality performance and a dependable replacement plan.

Long-lasting performance:

The S560 is built for reliable and durable performance, delivering consistent quality images day after day, for worry-free presentations.

Exceptional support:

The Dell Projector | S560 includes a 2-year Advanced Exchange Service and Limited Hardware Warranty for the projector unit, with available options for extendable warranty. Your purchase also includes 24/7 online and telephone technical support.

Technical Specifications

  • Displayable Colors : 1.07 billion
  • ANSI Lumens (Max.) : 3,400
  • Contrast Ratio : Max: 10,000:1 High Contrast Mode
  • Native: 1,800:1 (Full On/Full Off)
  • Aspect Ratio : 16:9
  • Native Resolution : Full 1080p HD (1920 x 1080)
  • Keystone Adjustment : Manual Vertical (± 5?)
  • Audio (Built-in Multimedia Speaker) : 2x 10W
  • Lamp Type / Light Source : Philips 260W user-replaceable
  • Throw Ratio : UST TR0.25
  • Screen Size - Diagonal : 81" ~ 100"
  • Projection Distance : 1.46 ft ~ 1.83 ft (44.6~55.8cm)
  • Lens : F-Stop : F/2.4
  • Focal Length : 497mm ± 25mm @ 89.1
  • Lens Offset : 118.5 ± 5%
  • 3D-Capable : Yes
  • Lamp Type / Light Source :
    • Up to 3K (Nor)
    • Up to 5K (Eco)
  • Wireless functionality + Advanced features : Optional (HDMI interface WIFI dongle)
  • Hsync Frequency : 15K-100KHz
  • Vsync Frequency : 24-120Hz


  • Power : 1x AC Power
  • USB : 1x Mini USB-B
  • HDMI : 2x HDMI 1.4a
  • Audio Input : 1x Audio-In (3.5mm)
  • Audio Output : 1x Audio-Out (3.5mm)
  • Audio In (RCA Pair) : 1x Audio-In (RCA pair)
  • Computer-In : 1x D-Sub VGA-In
  • Computer-Out : 1x D-Sub VGA-Out
  • Microphone : 1x Microphone (3.5mm)
  • Composite Video : 1x Composite Video RCA
  • Powered USB : 1x USB-A(5V/1.8A output)
  • RS232 port : 1x RS232 (9-pin D-Sub)
  • RJ45 port : 1x RJ45

Dimensions & Weight

  • Dimensions (excluding feet) :
    • (WxDxH)mm: 383mm x 318mm x 103mm
    • (WxDxH) inches: 15.08" x 12.52" x 4.06"
  • Weight : 4.7kg (10.36 lbs)


  • Power Supply : Universal AC 100-240 V 50-60 Hz with PFC
  • Power Consumption : Normal Mode: 320W ± 10% @ 110Vac
  • Eco-Mode: 270W ± 10% @ 110Vac
  • Standby Mode: ?0.5W


  • Product Safety, EMC and Environmental Datasheets
  • Dell Regulatory Compliance Home Page
  • Dell and the Environment


  • Networking : Yes (LAN / Crestron)
  • Projector Security : Kensington lock slot

Password protection

  • Quick Shutdown : Yes
  • Customizable Startup Display : Yes
  • Closed Captioning (for NTSC only) : Yes
  • Mounting Options : Front / Rear / Ceiling / Wall / Tabletop
  • Noise : Typical (Normal Mode): 34 dB(A)
  • Typical (Eco Mode): 29 dB(A)
  • Tilt : Front tilt adjustment wheel (-5°~ 5°)
