FFC / FPC Connectors

Featured Product Series

• Many new product designs require specific numbers of signal circuits, and it can be difficult to source small-pitch, multiple-circuit FFC/FPC connectors. Molex's Easy-On FFC/FPC Connecters are available with a wide variety of features to promote design flexibility. Among such features are pitch sizes that range from 0.20 to 2.00mm, circuit sizes from 2 to 96, actuator types that include front flip, back flip, slider, One-Touch and LIF, in a right-angle or vertical orientation. Ideal for consumer, mobile devices, and automotive markets.
• During assembly, coplanarity issues and multiple-step processes can cause errors and delays. Molex's Easy-On FFC and FPC connectors are reliable, robust and easy to operate, ideal for robotic mating and fully automated SMT processes. With minimized warpage and Nickel-plated terminals, Molex's Flexible Flat Cable/Flexible Printed Circuit Connectors are designed and tested to solve coplanarity or other issues that occur during the SMT process.
• Customers need stable supply chains and manufacturers that meet various product compliances requirements. As a proven leader within the industry, Molex provides dependable quality products that meet various environmental standards and RoHS certifications, assured capacity, knowledgeable engineering support and reliable business continuity planning (BCP).

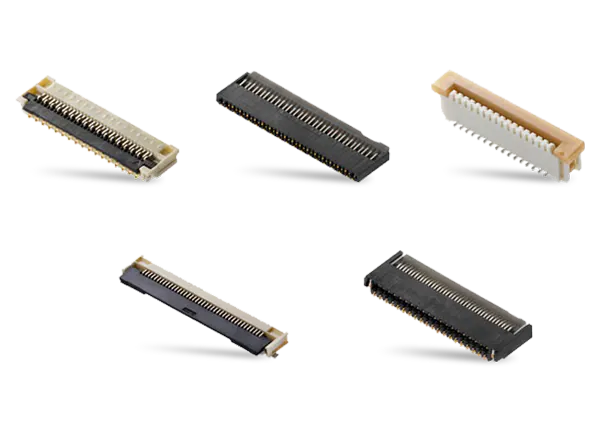

FD19 Series (0.50mm and 1.00mm pitch)

• Double-bottom?contacts deliver?secure?connectivity?

• Wide range of circuit?sizes with 0.50 and 1.00mm?pitch?

• High?operating?temperature up to 150°C

• Works with?eared and non-eared cable?s

LA75 Series (0.30mm pitch)

• Dual contact with?back flip?

• Cable lock feature available?

• High?operating?temperatures?up to 125??

• Compact size affords space savings?

FBH1 Series (0.50mm pitch)

• Compact size?affords space savings?

• Back flip?actuator?and?low-profile design offer design?flexibility?

• Dual contact provides reliable electrical performance?

• Allows high upward pull force?

FD4P Series (0.40mm pitch)

• High-density pin count in?0.40mm pitch?

• Double-bottom contacts deliver secure connectivity

• Works with?eared?and?non-eared?cable?s

• Provides high retention force?

One-Touch Series (0.50mm pitch)

• Easy and single-action FFC/FPC?mating?

• Easy-to-release cable?with push-button function?

• Provides high retention force?

• Has?ground terminal?and offers high-temperature options up to?125??
