FortiGate 90G Next-Generation Firewall

 Description

The FortiGate 90G is a next-generation firewall designed to provide advanced security and high-performance networking for small to medium-sized enterprises. It integrates firewall protection, SD-WAN, and Zero Trust Network Access (ZTNA) into a single platform, ensuring secure and optimized connectivity across distributed networks.

Powered by Fortinet’s FortiOS and advanced security processors, the FortiGate 90G delivers deep visibility and protection against modern cyber threats using AI/ML-based FortiGuard services. It enables organizations to control user access, secure applications, and maintain consistent network performance.

With features such as intrusion prevention, antivirus, web filtering, VPN support, and centralized management, the FortiGate 90G offers a complete security solution in a compact and scalable form factor, making it ideal for branch offices and enterprise environments.

Product Overview

The FortiGate 90G is a next-generation firewall (NGFW) designed for medium-sized enterprises and branch networks. It combines advanced security, networking, and SD-WAN capabilities in a single device. Powered by Fortinet’s FortiOS and custom ASIC processors, it delivers high performance with deep threat inspection and low latency.

Key Features

• Next-Generation Firewall (NGFW)
• Integrated SD-WAN
• Zero Trust Network Access (ZTNA)
• AI/ML-based threat protection
• Intrusion Prevention System (IPS)
• Antivirus & Web Filtering
• Application Control
• SSL & IPsec VPN support
• Centralized management (FortiCloud / Security Fabric)

Performance Specifications

• Firewall Throughput: Up to ~28 Gbps
• IPS Throughput: ~4.5 Gbps
• NGFW Throughput: ~2.5 Gbps
• Threat Protection: ~2.2 Gbps
• Concurrent Sessions: 1.5 Million
• New Sessions/sec: 124,000

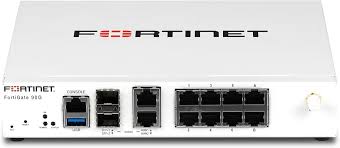

Interfaces & Ports

• 8 × GE RJ45 LAN ports
• 2 × 10GE (RJ45 / SFP+) WAN ports
• 1 × USB port
• Console port (RJ45)
• TPM (Trusted Platform Module) support

Security Capabilities

• Advanced Threat Protection (ATP)
• Deep Packet Inspection (DPI)
• Secure Web Gateway
• Anti-malware & Anti-spam
• Data Loss Prevention (DLP)
• Secure SD-WAN with traffic optimization

Use Cases

• Enterprise branch offices
• Campus networks
• Multi-site organizations
• Secure WAN transformation
• High-performance VPN environments

Advantages

• High performance with low latency
• All-in-one security + networking
• Easy centralized management
• Scalable for growing organizations
• Supports modern zero-trust architecture
