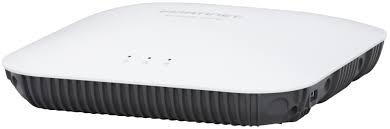

FortiAP 431G-F

FortiGate, FortiEdge Cloud, or SASE-managed access points

rnFortiAP™ access points are managed centrally by the integrated WLANrncontroller of any FortiGate® security appliance or through the FortiEdgernCloud provisioning and management portal. With the integration of thernwireless controller functionality into the market-leading FortiGate appliance,rnthese APs are perfect for campus and branch deployments. Fortinet’srnSecurity Fabric enables you to easily manage wired and wireless securityrnfrom a Single-pane-of-glass management console and protects your networkrnfrom the latest security threats.

Highlights

FortiAP 431G

• These high performing enterprise class extended frequency band Wi-Fi 6E indoor APs provide three radios and four spatial streams. These access points support the 6 GHz band, OFDMA, and a 5 Gigabit Ethernet port. The APs can provide 24/7 scanning across all bands while still providing access on both the 2.4 GHz and 5 GHz bands or 2.4 Ghz and dual 5 GHz service or the AP can be configured to provide simultaneous access on 2.4 GHz, 5 GHz, and the 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and locationing applications.
• Wi-Fi 6E | Tri-Radio 2.4 + 5GHz + 5GHz / 6GHz / Scanning | 8 Internal Antennas / 4 External RPSMA Connectors + 4 External Permanently attached Antennas 4x4 MU-MIMO | Up to 1148 Mbps + 2402 Mbps + 4804 Mbps
• Unified management console simplifies operations, ensuring consistency in effective policy enforcement and compliance
• Built-in foundation for zerotrust network access (ZTNA) and secure access service edge (SASE), allowing you the flexibility to easily deploy microbranches with the security you need at the edge of your network
• Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filter protect the wireless LAN from the latest security threats
•  Protects the network from advanced wireless threats and satisfies industry compliance such as PCI DSS

Use Cases

• FortiAPs allow for a versatile collection of installation topologies with options to fit any enterprise.

Specifications

Hardware Type: Indoor AP

Number of Radios: 3 + 1 BLE

Number of Antennas: Internal: x4 Dual band Wi-Fi + x4 Tri-band Wi-Fi and Scanning + 1 2.4GHz BLE/ZigBee + 1 GPS antenna

Antenna Type and Peak Gain : Omni Directional antenna. Dual band: 4.0 dBi for 2.4GHz, 5.6 dBi for 5 GHz Tr-band: 4.0 dBi for 2.4GHz, 6.0 dBi for 5 GHz and 5.7dBi for 6GHz band BLE antenna: 5.1dBi for 2.4Ghz

Frequency Bands (GHz): 2.4-2.484GHz; 5.15-5.25GHz; 5.25-5.35GHz; 5.35?5.47GHz; 5.47-5.725GHz; 5.725-5.85GHz; 5.925–6.425GHz; 6.425?6.525GHz; 6.525–6.875GHz; 6.875–7.125GHz

Radio 1 Capabilities: Frequency band,2.4GHz Channel width, 20/40MHz Modulation, BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 4x4 Service

Radio 2 Capabilities : Frequency band: 5.0GHz Channel width: 20/40/80/80+80MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 4x4 Service

Radio 3 Capabilities :Frequency band: 2.4GHz, 5.0GHz, and 6.0GHz Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 4X4 Service (2x2 when Scanning)

Maximum Data Rate: Radio 1: up to 1148 Mbps ,Radio 2: up to 2402 Mbps ,Radio 3: Up to 4804 Mbps

Bluetooth Low Energy Radio: Bluetooth scanning and iBeacon advertizement @10 dBm max TX power.
