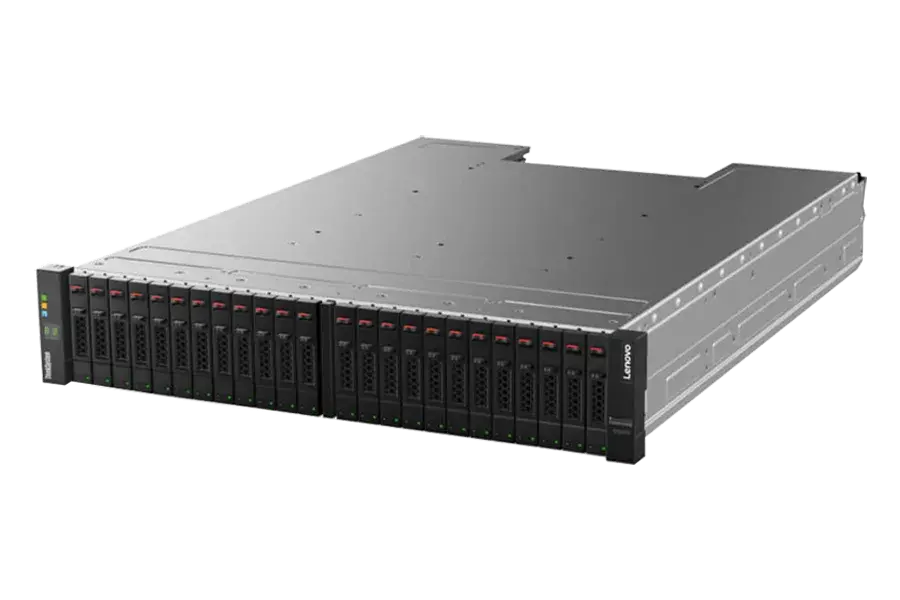

Lenovo Thinksystem DS6200 Storage

Designed for high availability Redundant hot-swap components Automatic failover & multipath support High IOPS, low latency Lower than competing AFA solutions

Category : Lenovo Storage
Brand : Lenovo
Model : DS6200 Storage



  • First-to-market midrange performance All-Flash SAN at entry-level pricing
  • Rapid Data Placement Engine provides accelerated performance and 99.999 percent availability
  • Superior cost/GB without compromising performance
  • Simple storage management for fast setup and easy administration with Rapid Deployment
  • NEBS-compliant and ruggedized components maximize uptime
  • Battery-free cache protection provides less servicing and greater uptime
  • Other key features include Rapid RAID Rebuild, Rapid Tiering, asynchronous replication, multiprotocol support, Active/Active controllers, and Lenovo XClarity integration


  • Form Factor/Height : 2U
  • Maximum Raw Capacity : 1.8PB with 24x 2.5-inch drive bays
  • Controllers : Dual (active/active) with total dual-controller memory of 32GB
  • Maximum Enclosures : 1 node + 9 expansion units; (2U12/2U24); mix-and-match allowed or 1 node + 3 D3284 expansion units
  • Maximum Drives : 276 (using 3 D3284 expansion units) or 240 (using 2.5-inch drives and 9 SFF expansion units)
  • Drive Types Supported : 12Gb SAS: 7.2K, 10K, and 15K HDDs; MLC SSDs; SED HDDs and SSDs (mixed per chassis)
  • Host Ports (max per controller) : 4-port SAS, 4-port FC, 4-port iSCSI, hybrid connectivity (FC/iSCSI)
  • Performance : Up to 600K random-read IOPS @ <1ms latency/7GBps read throughput/5.5GBps write throughput
  • Fans and Power Supplies : Hot-swap/redundant
  • Max Volumes per System : 1024 (up to 128TB each)
  • Energy Star Certified : Yes
  • Snapshots : Base 128; optional 512 or 1024
  • AFA License/Read Caching : Included
  • Asynchronous Replication : Optional (iSCSI or Fibre Channel)
  • Rapid Tier : HDD Tiering included; SSD Tiering requires optional license
  • Warranty : 3-year limited warranty, 9x5 next business day, onsite
  • Country Of Origin : China
  • Imported By : Lenovo India Pvt Ltd,RBD Icon, Level, 2, Outer Ring Rd, Doddanekundi, Mahadevapura, Bengaluru, Karnataka 560037
