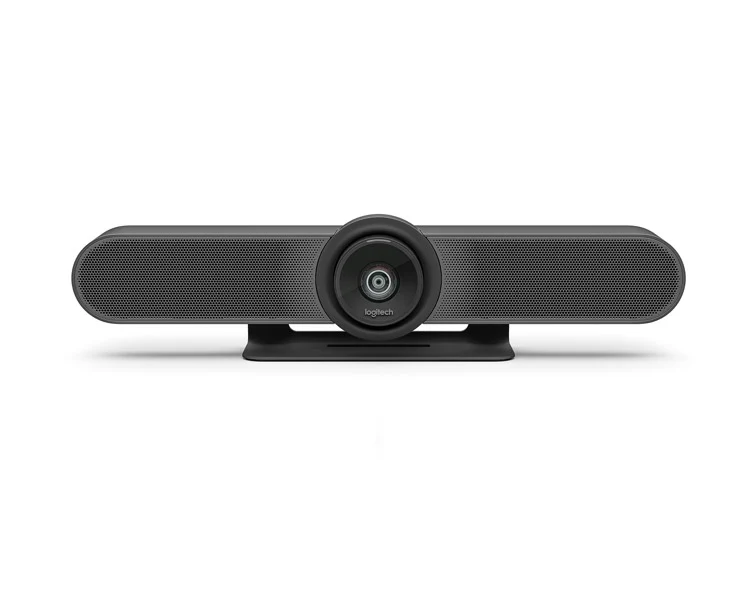

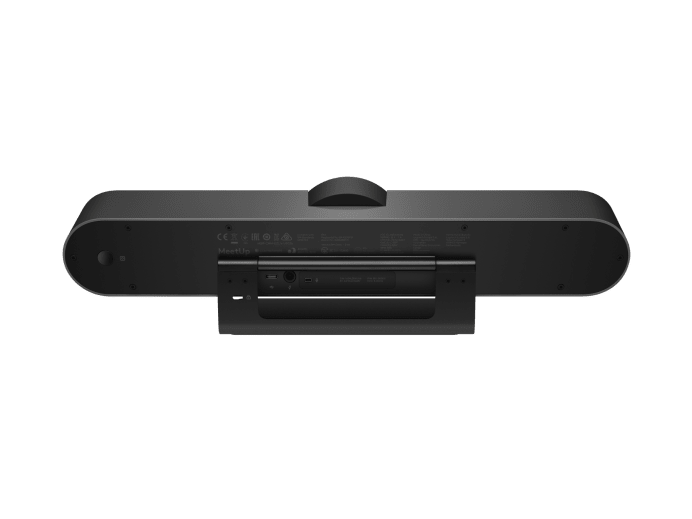

LOGITECH MEETUP

• Create plug-and-play videornconferencing with Meet Up,rnan all-in-one USB conferencerncamera for small rooms andrnspaces. Meet Up packs bigrnfeatures and unbeatable valuernin a compact form factor thatrnis simple to set up and easy torninstall.

KEY FEATURES

All-in-one designrn

• Compact all-in-one form factor takes uprnless space and minimizes cable clutter.

Plug-and-play USB connectivity

• Easily connects to PC, Mac® and Chrome TM devices with no additional software required.

Works with most video conferencing applications

• Compatible with virtually any video conferencing software app, including the ones you already use.

Certified for Business

• Business-grade certifications mean you can launch your next presentation or video meeting with complete confidence.

TAA Compliant

• MeetUp is TAA compliant. For applicable part numbers, visit support.

Razor-sharp optics

• Advanced Logitech lens technology delivers remarkable video quality with superb resolution, speed, fluidity, color balance, and detail.

Motorized pan/tilt

• Expand your field of view even further—up to 170°—to pan to the white board or view other areas of interest.

Ultra HD 4K image sensor

• Supports multiple resolutions, including 4K (Ultra HD), 1080p (Full HD), and 720p (HD) to best support the quality offered by your application and monitor.

5x HD zoom

• Zero in on close-ups of objects and whiteboard content with outstanding detail and clarity.

120° field of view

• Allows everyone in the room to be seen, even those close to the camera or seated at the edges of the room.

Camera presets

• Select up to three preset locations for the camera view and return to any of them with the push of a button on the remote control.

Rightsense Technologies

• RightSound optimizes the human voice and enhances conversational clarity. RightSight automatically moves the camera and adjusts the zoom so no one gets left out of the picture. And RightLight helps everyone look their best on camera, regardless of lighting conditions.

FEATURES & ACCESSORIES

Expansion microphone-ready

• Optional expansion microphone increases conversational radius in larger huddle rooms.

Bluetooth® wireless technology

• Connect to a Bluetooth® device for greatsounding audio calls.

3-microphones and custom-tunedrnspeakerrn

• Three beamforming microphones with noisernand echo cancellation—plus a customtuned speaker—are specifically optimizedrnfor small conference rooms.

Multiple mounting optionsrn

• Mount MeetUp wherever it works best—rntabletop, wall, or monitor—for the bestrnpossible huddle room experience.

.Kensington® security slot

• MeetUp is provisioned with a Kensingtonrnsecurity slot to help secure the equipmentrnwith an anti-theft lock.

Simple to manage

• Monitor and manage your meeting room devices from one single platform with Logitech Sync. Plus, get business insights into how your rooms are being used.

RF remote control

• Easily operate the pan/tilt/zoom functions during meetings to manually change camera angle and subject.

MEETUP TECH SPECS

GENERAL

Built-in Components:

• Ultra-HD camera with motorized pan/tilt, integrated microphone with 3 beamforming elements, full-range speaker, integrated table stand/wall mount

Enclosure:

• All-in-one enclosure with patented antivibration suspension system

Remote:

• RF remote control with three camera presets

Security:

• Kensington security slot

USB 2.0 Cable:

• 5m (16 ft) included; customersupplied USB 3.0 cable required for 4K video
• Dimensions (H x W x D): 104mm (4.09 in) x 400
• mm (15.75 in) x 85 mm (3.27 in)

Weight:

• 1.04 kg (2.3 lbs)

CAMERA

Lens:

• Custom Logitech lens with motorized pan/tilt

Zoom:

• 5x digital zoom

Pan:

• +/- 25°

Tilt:

• +/- 15°

Field of View:

• Diagonal: 120°, Horizontal: 113°,

Vertical:

• 80.7°

Total Room Coverage:

• 163° wide x 110° tall (field of view + pan and tilt)

4K Ultra HD:

• Up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable

Full HD: Up to 1920 x 1080 pixels @ 30 fps

HD: Up to 1280 x 720 pixels @ 30 fps

RightLight Technologies:

• Low-light compensation, video noise reduction, low-light saturation optimization

RightSight Technologies:

• Automatically adjusts camera position and zoom to find and frame everyone in the room.

SPEAKER

• Volume:

  • 95 dB SPL at 1/2 meter peak

  Sensitivity:

  • 86.5+/-3dB SPL at 1/2 meter

  Distortion:

  • 200-300Hz < 3%, 3000 Hz -10KHz < 1%

  MICROPHONES

  Beamforming Elements:

  • 3

  Pickup Range:

  • 4 m (13.1 ft)

  Sensitivity:

  • -27 dB

  Frequency Response:

  • 90Hz-16KHz

  RightSound Technologies:

  • AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)

  Noise Suppression:

  • AI filter

  Date Rate:

  • 32KHz sampling rate

  Add-on Mics:

  • Supports 1 Expansion Mic for MeetUp to expand audio coverage (not included)

  CERTIFICATIONS & COMPATIBILITY

  • Plug-and-play USB connectivity

  Certifications:

  •  Certified for Skype for Business and ready for
  • Teams
  • Zoom Certified
  • Tencent Certified
  • Certified for Google Hangouts Meet Hardware.

  Compatibility:

  • RingCentral
  • Pexip
  • GoToMeeting
  • Microsoft Cortana®
  • Cisco Jabber®
  • BlueJeans
  • BroadSoft
  • Vidyo
  • And other video conferencing, recording, and broadcasting applications that support USB cameras.

RIGHTSENSE TECHNOLOGIES

• RightLight
• RightSight
• RightSound.
