Magnetic and Modular Jacks and Plugs

Magnetic Jacks

• Magnetic Jacks, available in single-port MXMag and multi-port versions, simplify customer board layouts by reducing the components required and support a wide variety of applications including computer, network and telecommunications equipment.

IEEE Compliant

• IEEE 802.3 - Ethernet 10/100/1000 compatible
• IEEE 802.3at - Power over Ethernet Plus compatible
• IEEE 802.3af  - Power over Ethernet compatible

Non-PoE/PoE/PoE+ options:

• Provides flexibility for a variety of design applications

Fully shielded designs:

• Advanced EMI and ESD protection

Integrated PD or PSE design

•  PoE circuitry, transformers, chokes, capacitors and resistors, and other components with the connector
•  Eliminates complex design and testing, reduces time-to-market, saves PCB space

Integrated magnetics

•  Filters common mode noise to provide signal integrity and protects PHY chip
•  Provides DC isolation
•  Offers low mode conversion

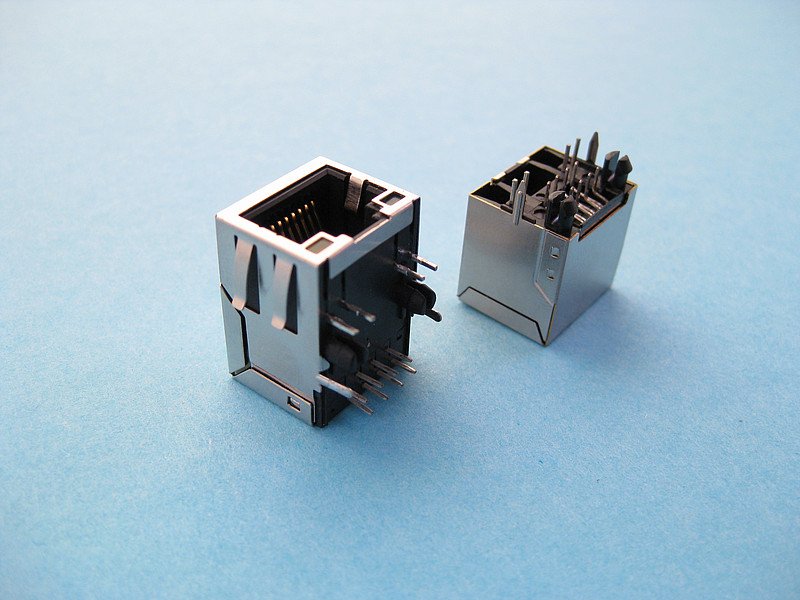

Modular Jacks

• Efficient production processes deliver cost-effective Modular Jacks and Plugs that ensure high performance and superior reliability across a wide range of Ethernet data speeds.
• RJ11 and RJ45 jacks in right-angle, vertical top/bottom-entry styles, through-hole or SMT soldering; Single-port, ganged and stacked multi-port versions
• Delivers flexibility for a variety of design applications

• Meets the needs of a variety of applications

Shielding available for both plugs and jacks

• Provides advanced EMI/RFI protection
• External and internal shield available in many versions

SMT jacks available with Kapton tape

• Enables automated, quick placement on PCBs

Lightpipes available with modular jacks

• Maintains high signal integrity performance. Reduces EMI/RFI

1.27µm (50µ”) all-gold plating options

• Meets FCC68.5, IEC60603-7
• Approved for all FCC and IEC license applications

Cat 3 and Cat 5e speeds available

• Suitable for a wide range of applications

Low-profile versions

• Allows for tight board stacking

Various panel grounding tab configurations

• Available with tabs and without tabs
•  Fits various panel cut-out needs
•  PCB ground tabs can be located either in front of or behind plastic peg

LED options, including lightpipes on modular jacks

• Provides a visual indication of port activity

Keep out” feature available

• Latch prevents insertion of an RJ11 plug into an RJ45 housing, which can cause damage to contacts

Palladium nickel and gold flash plating options

• Achieves 2,500 mating cycles
•  Meets durability requirement of IEC60603-7 PL 2 and FCC68.5

Modular Jacks

• Various plugs in a variety of circuits sizes available with and without shielding options suitable for Cat3, Cat5e and Cat6 applications.

50µ" Gold plating options

• Meets FCC68.5, IEC60603-7 and is approved for all FCC and IEC licenses applications

Variety of circuit sizes

• Provides flexibility for a variety of design applications

Unshielded plugs provide strain relief into integrated plastic housing

•  Shielded plugs provide strain relief through the crimp shield
•  Eliminates extraction force on the terminated contacts
