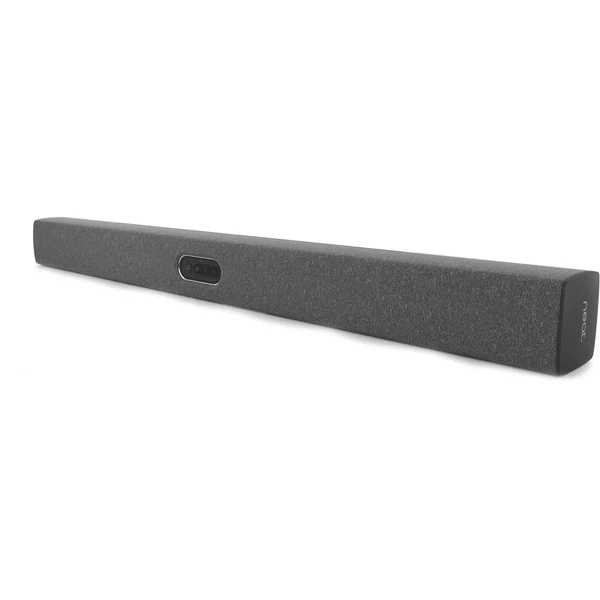

Neat Bar Video Conferencing Solution

Neat Bar is our compact and highly capable meeting device designed and engineered for Zoom. It’s perfect for bringing superior-quality audio, and video to your huddle, focus and meeting spaces with up to 10 participants. All you need is in the box, including mounts, cables and clear instructions. So it’s easy for anyone to install and set-up, above or below one or two screens. Our dedicated Neat Pad Controller comes included with Neat Bar, but you can choose to add an additional Neat Pad to be used as a scheduling display outside your meeting room.

Neat Bar Specifications

• Camera LED
• System LED
• Accelerometer
• Ambient light sensor
• Sensors for temperature, humidity, CO2 and VOC (*)
• Table stand, wall mount and screen mount
• Dual screen support
• Kensington lock
• Zoom Rooms software

Audio

• Speakerbox for maximal tonal range with minimal distortion
• Opposing drivers for vibration cancellation
• Dedicated wide-angle ultrasonic tweeter
• 3 sensor mics
• 5 microphones angled in an end-fire array
• Hardware accelerated audio processing
• Beamforming
• Echo cancellation
• Noise suppression
• Automatic gain control
• Dereverberation

Video

• 4x digital zoom
• 4056*3040 (12 MP) capture resolution
• 120 degrees horizontal field of view
• Automatic people framing (*available in beta)
• Hardware accelerated video encode and decode
• Distortion correction
• Noise reduction
• Chromatic aberration correction
• Automatic white balance and color correction
• People video resolution: Up to 1080p / 30
• Content video resolution: 720p / 60, 1080p / 30

Security

• Secure boot
• Communications are established with 256-bit TLS encryption
• Shared content is encrypted with AES-256 encryption
• The Zoom Rooms app is secured with App Lock Code
• As a native Zoom device Neat Bar supports all Zoom signaling and media encryption protocols.

Networking & ports

• WiFi (* available in beta)
• AC Power (internal power supply)
• Ethernet
• USB-C for touch input (* available in beta)
• 2x HDMI out for external screens
• HDMI-in for Zoom sharing (1080p)

Size & weight

• Width: 21.9 inches (556 mm)
• Height: 3 inches (76 mm)
• Depth: 3 inches (76 mm)
• Weight: 3.75 pounds (1.7 kg)

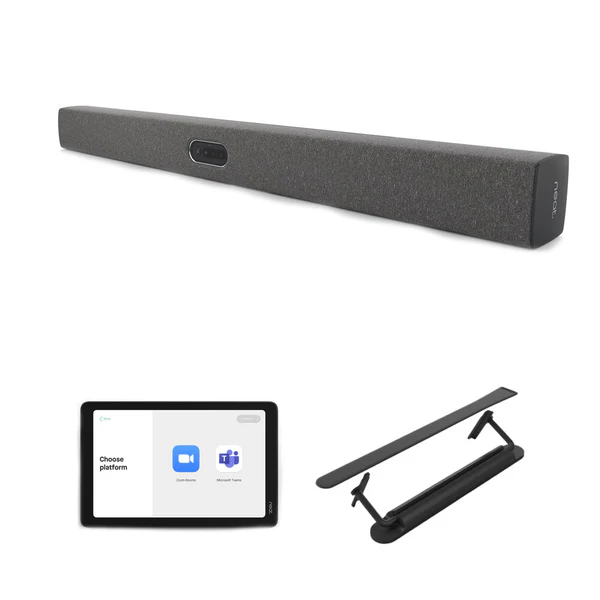

What’s in the box

• Neat Bar
• HDMI cable (6.5 feet / 2 meters)
• Ethernet cable (9.8 feet / 3 meters)
• Power cord (9.8 feet / 3 meters)
• Mount adapter, wall mount, screen mount and table stand
• 4x M6 (1.18 inches / 30mm) screw for VESA mount
• 4x M8 (1.18 inches / 30mm) screw for VESA mount for two-screen setup
• 2x spacer to secure parallel TV mount
