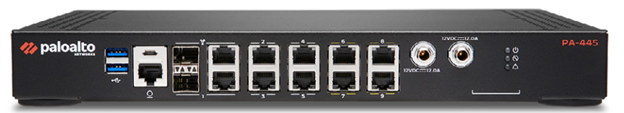

Palo Alto Networks PA-445 Next Generation Firewalls

PA-400 Series

• The Palo Alto Networks PA-400 Series, comprising the PA-460, PA-450, PA-440, and PA-410, brings ML-Powered NGFW capabilities to distributed enterprise branch offices, retail locations, and midsize businesses. The world’s first ML-Powered Next-Generation Firewall (NGFW) enables you to prevent unknown threats, see and secure everything—including the Internet of Things (IoT)—and reduce errors with automatic policy recommendations.

Key Security and Connectivity Features

ML-Powered Next-Generation Firewall

• Embeds machine learning (ML) in the core of the firewall to provide inline signatureless attack
• prevention for file-based attacks while identifying and immediately stopping never-before-seen phishing attempts.
•  Leverages cloud-based ML processes to push zero-delay signatures and instructions back to the NGFW.
•  Uses behavioral analysis to detect IoT devices and make policy recommendations as part of a cloud-delivered and natively integrated service on the NGFW.
• Automates policy recommendations that save time and reduce the chance of human error

PA-400 Series Performance and Capacities

Firewall throughput (HTTP/appmix)

• 2.7 Gbps

Threat Prevention throughput (HTTP/appmix)

• 1.25 Gbps

IPsec VPN throughput

• 1.1 Gbps

Max sessions

• 200,000

New sessions per second

• 34,000

Networking Features

Interface Modes

• L2, L3, tap, virtual wire (transparent mode)

Routing

• OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
• Policy-based forwarding
• Point-to-point protocol over Ethernet (PPPoE)
• Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3

SD-WAN

• Path quality measurement (jitter, packet loss, latency)
• Initial path selection (PBF)
• Dynamic path change

IPv6

• L2, L3, tap, virtual wire (transparent mode)
• Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
• SLAAC

IPsec VPN

• Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication)
• Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
• Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512

VLANs

• 802.1Q VLAN tags per device/per interface: 4,094/4,094
