Pro AV performance in extra-large rooms

Nureva HDL410 system

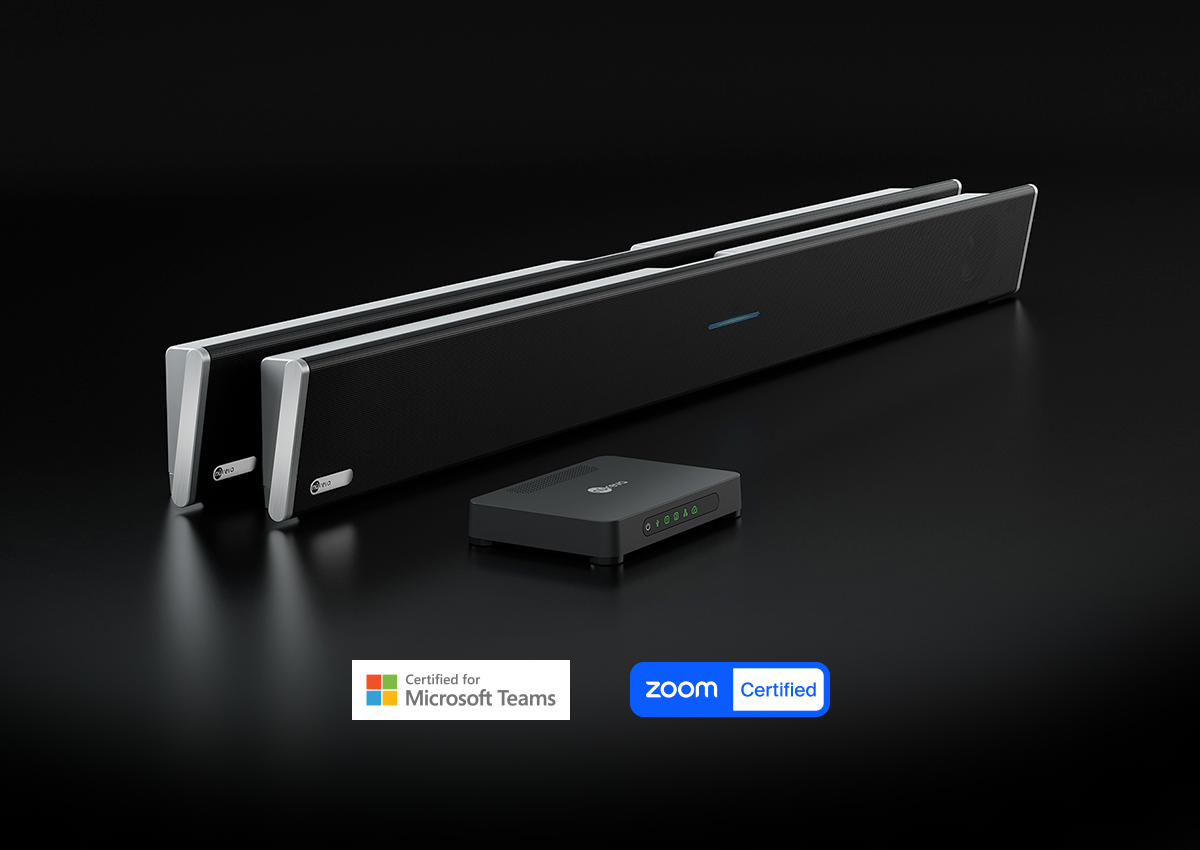

The HDL410 system delivers pro AV performance without the cost and complexity of a custom pro AV system. It combines a powerful connect module with two integrated microphone and speaker bars to offer advanced processing and premium features for extra-large spaces up to 35' x 55' (10.7 x 16.8 m).

Next-generation microphone pickup

Like all Nureva systems, the HDL410 is powered by patented Microphone Mist™ technology, which fills a space with thousands of virtual microphones for true full-room audio coverage. Because the HDL410’s connect module has greater processing power and expanded memory, it unlocks more advanced audio capabilities within the technology. This includes processing the physical mics from two bars together instead of separately, resulting in clearer, more consistent microphone pickup.

Simple wall-mounted installation

Installing the HDL410 is an easy task that takes about 60 minutes. You hang each unit on the wall with two screws, run one cable from each unit to the connect module and then another to a computer or other internet-connected device. Compare that to traditional systems for extra-large spaces that may include choosing and installing multiple mics, speakers, cables and a DSP  a process that can take days and require outside technicians.

Features

Unified coverage map

• allows both microphone and speaker bars to work together to create a giant microphone array

 Intelligent Sound Targeting

• uses adaptive learning algorithms to preemptively ignore persistent unwanted sounds like HVAC

 Position-based gain control

applies gain separately to each sound, which enables specific optimizations that create a natural listening experience

Simultaneous processing

•  all virtual microphones ensures that conversations sound natural even when more than one person is speaking at the same time

Voice Amplification Mode

• (with audience mute) lets presenters use a headset mic to amplify their voice in the room

Camera zones

• work with sound location data to automatically switch between multiple HDMI and USB cameras

 Integrated processing

• requires no separate DSP as all processing is integrated into the system

Console Direct

• offers a secure, 24/7 network connection to Nureva Console without the need for an in-room PC

Technology features

• Advanced Microphone Mist technologyprocessing platform
• Unified coverage map
• Continuous autocalibration
• Position-based gain control
• Acoustic echo cancellation
• Built-in sound masking
• Plug and play — no software or drivers required
• Ethernet cables to each microphone and speaker bar
• Primary audio source for video playback
• Integrated, multicolor status LED

Microphones

• 24 low-noise omnidirectional MEMS (12 in each microphone and speaker bar)
• Frequency response at 94 dB SPL 100 Hz to 7 kHz Total harmonic

Speakers

• 4 x 20 W 4" aluminum cone (2 in each microphone and speaker bar)
• Total harmonic distortion (THD) 0.25% (typical)

Connect module

• USB 2.0 interface to computer or collaboration hub, type B Auxiliary out —
• 3.5 mm single-ended stereo jack Auxiliary in —
• 3.5 mm single-ended stereo jack
• 2 connections to microphone and speaker bars RJ45
• Console Direct RJ45 for connecting to network Input jack for power supply

Dimensions

Integrated microphone and speaker bar (each)

• Width: 60.0" (152.4 cm)
• Height: 5.91" (14.9 cm)
• Depth: 3.5" (9.0 cm)
• Weight: 18.0 lb. (8.2 kg)

Connect module

• Width: 8.7" (22.2 cm)
• Height: 1.46" (3.7 cm)
• Depth: 5.91" (15.0 cm)
• Weight: 0.97 lb. (0.44 kg)

System includes
