Pro AV performance in extra-large rooms

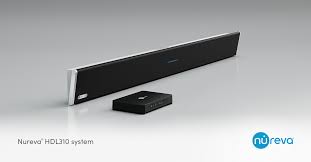

Nureva HDL310 system

• The HDL310 system delivers pro AV performance without the cost and complexity of a custom pro AV system. It combines a powerful connect module with one integrated microphone and speaker bar to offer advanced processing and premium features for large spaces up to 30' x 30' (9.1 x 9.1 m).

Next-generation microphone pickup

• Like all Nureva systems, the HDL310 is powered by patented Microphone Mist™ technology, which fills a space with thousands of virtual microphones for true full-room audio coverage. Because the HDL310’s connect module has greater processing power and expanded memory, it unlocks more advanced audio capabilities within the technology — made possible by new algorithms that offer improved echo cancellation, speaker EQ and noise reduction.

Simple wall-mounted installation

• Installing the HDL310 is an easy task that takes about 30 minutes. You hang the unit on the wall with two screws, run one cable to the connect module and then another to a computer or other internet-connected device. Compare that to traditional multicomponent systems that may include choosing and installing multiple mics, speakers, cables and a DSP — a process that can take days and require outside technicians.

Tools to set up, manage and customize

• The HDL310 includes software and services designed to keep your rooms running smoothly. Nureva Console helps you manage and monitor your devices at scale from a secure, cloud-based platform. The Nureva App makes it simple to set up and configure your HDL310 quickly, optimizing both the in-room and remote audio experience. The Nureva Developer Toolkit includes cloud-based and local APIs. And every device comes with a 2-year subscription to Nureva Pro, which offers expanded support hours, advance hardware replacement and enhanced Nureva Console features

Features

• Intelligent Sound Targeting uses adaptive learning algorithms to preemptively ignore persistent unwanted sounds like HVAC
• Position-based gain control applies gain separately to each sound, which enables specific optimizations that create a natural listening experience
• Simultaneous processing of all virtual microphones ensures that conversations sound natural even when more than one person is speaking at the same time
• Voice Amplification Mode (with audience mute) lets presenters use a headset mic to amplify their voice in the room
• Camera integrations leverage our sound location data to automate camera tracking and switching with a variety of cameras
• Integrated processing requires no separate DSP as all processing is integrated into the system
• Console Direct offers a secure, 24/7 network connection to Nureva Console without the need for an in-room PC

Technology features

• Advanced Microphone Mist technologyprocessing platform
• Unified coverage map
• Continuous autocalibration
• Position-based gain control
• Acoustic echo cancellation
• Built-in sound masking
• Plug and play — no software or drivers required
• Ethernet cables to each microphone and speaker bar
• Primary audio source for video playback
• Integrated, multicolor status LED

Microphones

• 12 low-noise omnidirectional MEMS Frequency response at 94 dB SPL 100 Hz to 7 kHz Total harmonic distortion (THD) 0.25% (typical)

Speakers

• 2 x 20 W 4" aluminum cone Total harmonic distortion (THD) 0.25% (typical)

Connect module

• USB 2.0 interface to computer or collaboration hub, type B Auxiliary out —
• 3.5 mm single-ended stereo jack Auxiliary in —
• 3.5 mm single-ended stereo jack
• 2 connections to microphone and speaker bars RJ45
• Console Direct RJ45 for connecting to network Input jack for power supply

Dimensions

Integrated microphone and speaker bar (each)

• Width: 60.0" (152.4 cm)
• Height: 5.91" (14.9 cm)
• Depth: 3.5" (9.0 cm)
• Weight: 18.0 lb. (8.2 kg)

Connect module

• Width: 8.7" (22.2 cm)
• Height: 1.46" (3.7 cm)
• Depth: 5.91" (15.0 cm)
• Weight: 0.97 lb. (0.44 kg)

System includes
