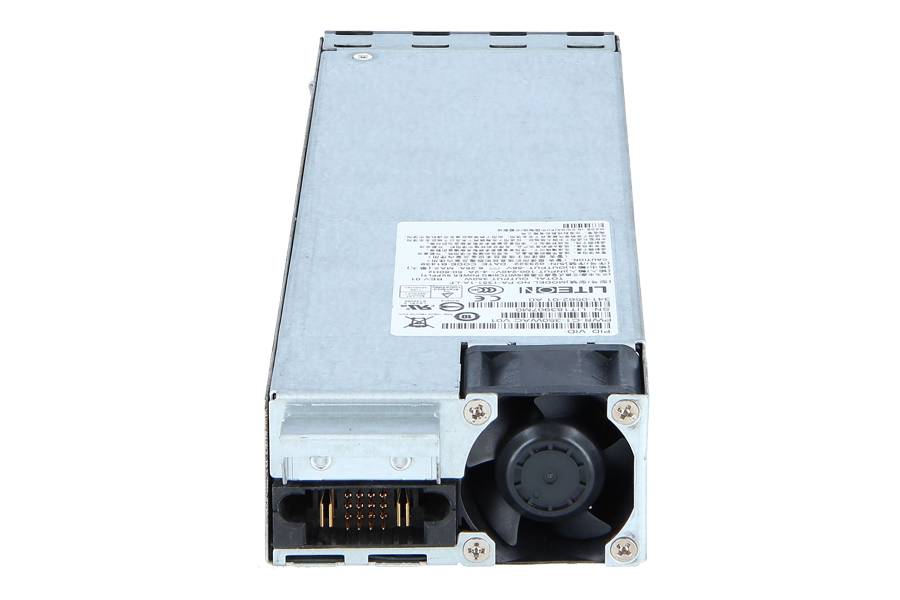

Cisco 350W AC 80+ Platinum Config 1 Secondary Power Supply PWR-C1-350WAC-P/2

PWR-C1-350WAC/2 is a Cisco Catalyst Switch 3850 Series Switch Power Supply, delivering 350W AC power for Cisco 3850 switches.

Specifications

• Product Code : PWR-C1-350WAC/2
• Operating temperature : 23 to 113° F (–5 to 45° C)
• Storage temperature : –40 to 158° F (–40 to 70° C)
• Relative humidity : 10 to 95% (noncondensing)
• Altitude : Up to 10,000 ft (3049 m)
• Weight : 2.7 lb (1.2 kg)
• Dimensions (H x D x W) : 1.38 x 10.22 x 3.25 in. (3.5 x 26 x 8.3 cm)
• Maximum output power : 350 W
• Input voltage range and frequency : 100 to 240 VAC (autoranging), 50 to 60 Hz
• Input current : 4–2 A
• Output ratings : –56 V@6.25 A
• Total input BTU* : 1357 Btus per hour, 398 W
• Total output BTU* : 1194 Btus per hour, 350 W
• *The total input and total output BTU ratings refer to input power to the power supply and output power to the switch. The BTU ratings are based on 100 VAC for the 350-W and 715-W power supplies and 115 VAC for the 1100-W power supply.
• Maximum output power : 350
• Compatible Products : Cisco Catalyst 3850 Series Switches
