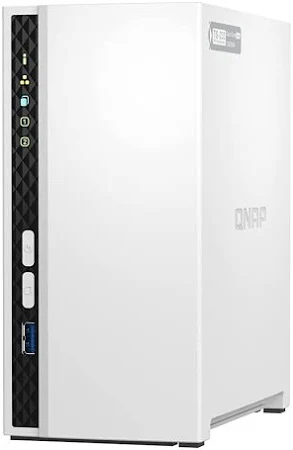

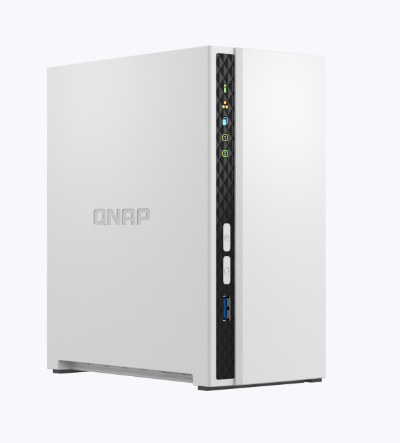

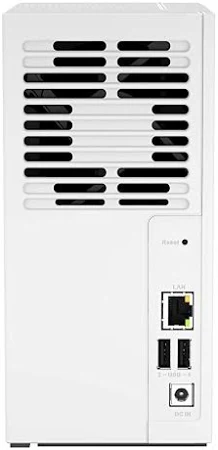

QNAP TS-233 NAS Network Storage

QNAP TS-233

CPU

• ARM 4-core Cortex-A55 2.0GHz processor

CPU Architecture

• 64-bit ARM

Graphic Processors

• Mali-G52

Floating Point Unit

• Yes

Encryption Engine

• Yes

Hardware-accelerated Transcoding

• Yes

Neural Processing Unit (NPU)

• Yes

System Memory

• 2 GB on board (non-expandable)

Note: Reserves some RAM for use as shared graphics memory.

Maximum Memory

• 2 GB on board (non-expandable)

Flash Memory

• 4 GB (Dual boot OS protection)

Drive Bay

• 2 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

• 3.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

Hot-swappable

• Yes

Gigabit Ethernet Port (RJ45)

• 1

Wake on LAN (WOL)

• Yes

Jumbo Frame

• Yes

USB 2.0 port

• 2

USB 3.2 Gen 1 port

• 1

Form Factor

• Tower

LED Indicators

• System Status, LAN, USB, HDD1~2


Buttons

• Power, Reset, USB Copy

Dimensions (HxWxD)

• 186 × 91.7 × 157.6 mm
• Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)

Weight (Net)

• 1.69 kg

Weight (Gross)

• 1.89 kg

Operating Temperature

• 0 - 40 °C (32°F - 104°F)

Storage Temperature

• -20 - 70°C (-4°F - 158°F)

Relative Humidity

• 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)

Power Supply Unit

• Minimum 48W adapter (12VDC), 100-240VAC

Power Consumption: HDD Sleep Mode

• 3.43 W

Power Consumption Operating Mode, Typical

• 10.81 W
• Tested with drives fully populated.

Fan

• 1 x 80mm, 12VDC

System Warning

• Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

• 200
