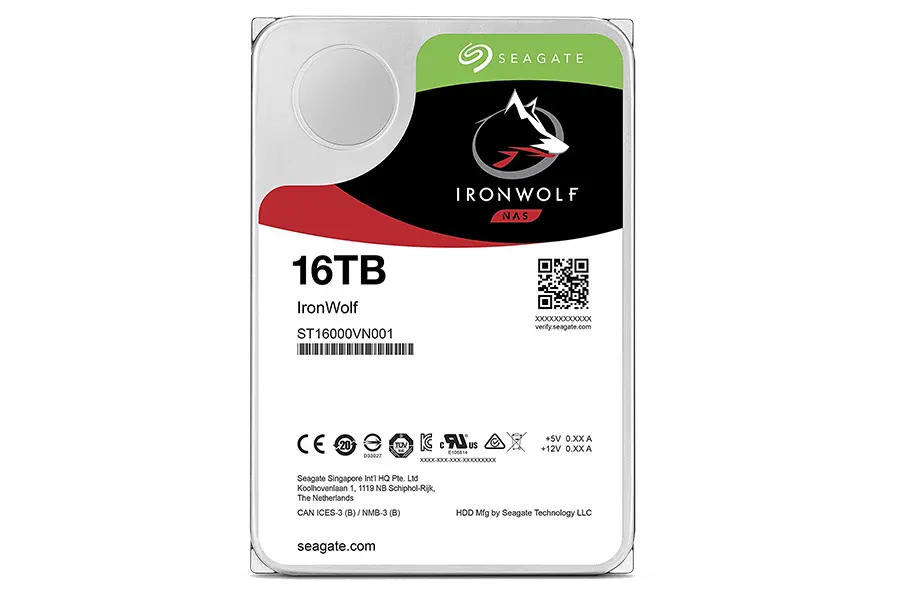

Seagate IronWolf 16TB NAS Internal Hard Drive HDD ST16000VN001

The Power of Agility for Home, SOHO, and SMB NAS Enclosures

IronWolf™ is designed for everything NAS. Get used to tough, ready, and scalable 24×7 performance that can handle multi-drive environments across a wide range of capacities.

Best-Fit Applications

• 1- to 8-bay network attached
• storage (NAS)
• Desktop RAID and servers
• Multimedia server storage
• Private cloud

Key Advantages

• Optimized for NAS with AgileArray.™ AgileArray enables dual-plane balancing and RAID optimization in multi-bay environments, with the most advanced power management possible.
• Actively protect your NAS with IronWolf Health Management focusing on prevention, intervention, and recovery.1
• High performance means no lag time or downtime for users during workload traffic for the NAS. Seagate leads the competition with the highest-performing NAS drive portfolio.2
• Rotational Vibration (RV) sensors. First in its class of drives to include RV sensors to maintain high performance in multi-drive NAS enclosures.3
• Range of capacities up to 16TB. More capacity options means more choices that will fit within the budget. Seagate provides a scalable solution for any NAS use-case scenario.
• Do more in multi-user environments. IronWolf provides a workload rate of 180TB/year. Multiple users can confidently upload and download data to the NAS server, knowing IronWolf can handle the workload, whether you are a creative professional or a small business.
• Designed for always-on, always-accessible 24×7 performance. Access data on your NAS any time, remotely or on site.
• 1M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs.

Specifications

• Specifications : 16TB
• Capacity : 16TB
• Standard Model Number  : ST16000VN001
• Interface SATA : 6Gb/s SATA

Features and Performance :

• Drive Bays Supported : 1-8 Bays
• Multi-User Technology : 180TB/year
• Rotational Vibration (RV) Sensor : Yes
• Dual-Plane Balance : Yes
• Error Recovery Control : Yes
• Max. Sustained Transfer Rate OD (MB/s) : 210MB/s
• Spindle Speed (RPM) : 7,200
• Cache (MB) : 256

Reliability :

• Load/Unload Cycles1 : 600,000
• Nonrecoverable Read Errors Rate, Max : 1 per 10E15
• Power-On Hours : 8,760
• Workload Rate Limit (WRL) : 180
• Mean Time Between Failures (MTBF, hours) : 1,000,000
• Limited Warranty (years) : 3

Power Management :

• Startup Current, Typical (12V, A) : 1.8
• Average Operating Power (W) : 7.3W
• Idle Average (W) : 5.3W
• Standby Mode/Sleep Mode, Typical (W) : 0.8/0.8
• Voltage Tolerance, Inc. Noise (5V) : ±5%
• Voltage Tolerance, Inc. Noise (12V) : ±10%

Environmental/Temperature :

• Operating (ambient, min °C) : 5
• Operating (drive case, max °C)2 : 70
• Nonoperating (ambient, min °C) : -40
• Nonoperating (ambient, max °C) : 70
• Halogen Free : Yes

Environmental/Shock :

• Shock, Operating/Nonoperating: 2ms (max) : 50Gs/200Gs

Environmental/Acoustics :

• Idle (typical)3 : 2.8bels
• Seek (typical) : 3.0bels

Physical :

• Height (mm/in) : 26.11mm/1.028in
• Width (mm/in, max) : 101.85mm/4.01in
• Depth (mm/in, max) : 146.99mm/5.787in
• Weight (g/lb, typical) : 670g/1.477lb
• Carton Unit Quantity : 20
• Cartons per Pallet/Cartons per Layer : 40/8
