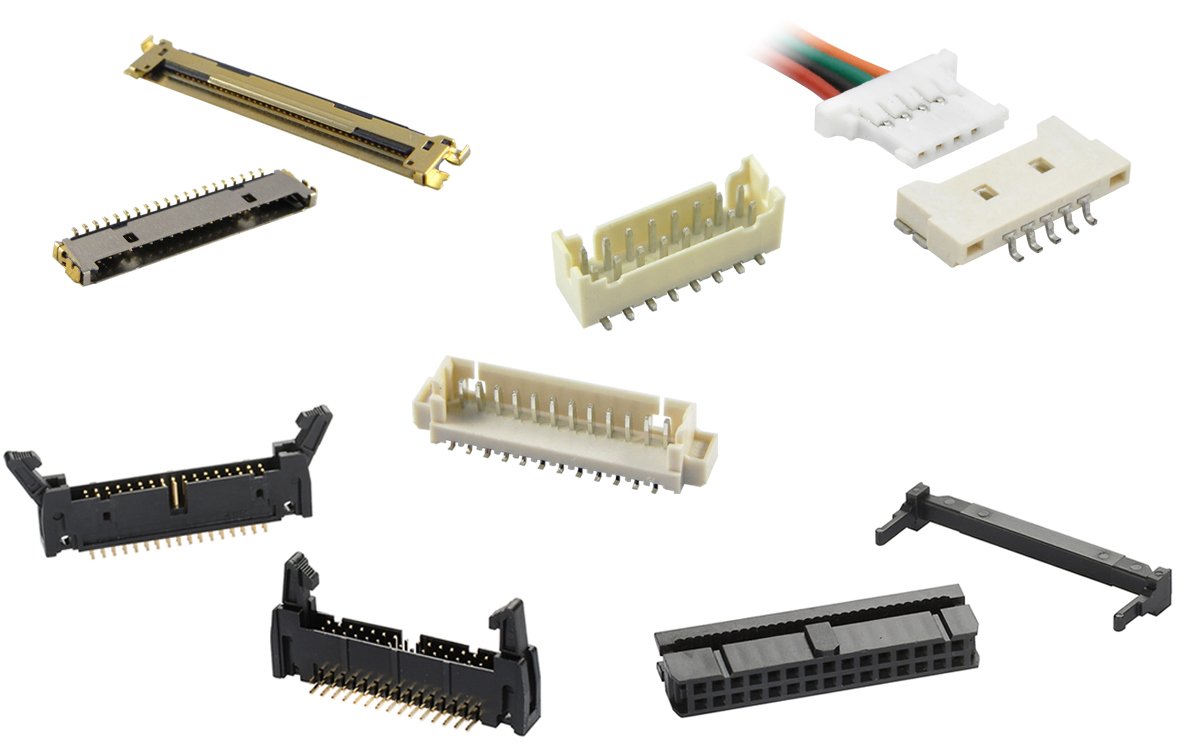

Wire-to-Board Connectors

Molex offers a wide variety of wire-to-board connector types that fit applications requiring high-power, microminiature, sealed, and glow wire capable options.

Category : Accessories
Brand : Molex
Model : Wire-to-Board Connectors

Description

OneBlade Connectors

  • The modular OneBlade 1.00mm-Pitch Wire-to-Board Connector System with friction lock and spacious pick-and-place area combines design simplicity with speed and ease of assembly.

PicoBlade Connectors

  • High-performance PicoBlade Wire-to-Board and Wire-to-Wire Connectors feature both Tin and Gold-plated versions for superior flexibility, reliability and durability across a wide variety of applications and industries.

Micro-Latch Connectors

  • Molex's Micro-Latch connector system provides a reliable connection interface for industry- standard 2.00mm wire-to-board applications.

Milli-Grid Connectors

  • A space saving, high-density connector system based on a 2.00-by-2.00mm grid pattern that offers complete design flexibility.

Mini-SPOX Connectors

  • Provides a fine-pitch connector system that features lower profile heights and various circuit sizes in vertical and right-angle configurations, with an additional polarization feature which helps to avoid mismating.

C-Grid Connectors

  • The C-Grid family of connectors offers benefits for a wide range of electronic products across industries. The latest version from Molex, C-Grid III, offers high mechanical stability in a compact 2.54mm pitch post and receptacle. Find the flexible C-Grid and C-Grid III components that fit your project.

KK Connectors

  • KK Connector Systems are customizable for a variety of power and signal applications. Available in industry-standard 2.54, 3.96 and 5.08mm pitch sizes, this single-row, wire-to-board and board-to-board product family is cost effective and versatile.

Standard .062" and 0.93" Pin and Socket Connectors

  • Pin and Socket Connectors offer dependable and adaptable connectivity for various industries. See how these cost-effective, versatile solutions can deliver consistent electrical performance and secure connections to your project.

Pico-Clasp Connectors

  • Offer a variety of mating styles and orientations plated in tin or gold to provide design flexibility in a vast array of compact applications.

Micro-Lock Plus Connectors

  • Delivers high performance and reliability in a compact size; available in vertical and horizontal configurations for design flexibility and color coding to aid assembly.

CLIK-Mate Connectors

  • CLIK-Mate connectors are designed for applications that require higher pin count connectors to carry more signal lines in less space; the system includes a unique tuning-fork terminal concept that provides low-insertion force and secure mating contact.

iGrid

  • Molex's iGrid 2.00mm pitch connector system offers compact design and anti-tangle internal lock for applications requiring good mating retention.

Mini-Lock Connectors

  • Mini-Lock Wire-to-Board/Wire-to-Wire 2.50mm pitch system is a versatile and proven product with a broad range of features that include TPA, positive-lock and a glow wire capable option to meet varying industry needs.

RAST Connectors

  • The UL-94V0-rated, Glow-Wire-compatible RAST Connector System family delivers a range of current ratings to offer design flexibility for a variety of home appliance and automotive lighting applications.

CP Connectors

  • Leveraging full-keying and color-pairing features, the foolproof CP Connector Systems enhance user-safety while speeding up consumer and industrial interconnect assembly applications.
Pro

Zero-Hachi Connectors

  • The small pitch size (0.80mm) and low-profile height (1.60mm) of the Zero-Hachi Wire-to-Board Connector System enables device makers to design-in reliable connectivity solutions to space-tight applications.

Pico-EZmate Connectors

  • Now with a current rating of up to 2.8A and an improved withdrawal force, compact Pico-EZmate 1.20mm and Pico-EZmate Plus 1.00mm-Pitch Connectors deliver high performance in a low-profile height, making them ideal for automated assembly processes in tight-spaced applications across various industries

Pico-Lock Connectors

  • Available in 1.00, 1.50mm and 2.00mm pitch versions, the Pico-Lock wire-to-board system offers an ideal combination of low profile, high current and durable locking for any application requiring space savings and secure mating retention.
Micro-One Connectors
  • Provides an integrated ISL to ensure proper terminal insertion and prevent accidental back-outs to achieve a secure electrical contact and improved mating retention in high-vibration applications.

Nano-Fit Connectors
  • The smallest to-date, fully isolated header that meets customers’ power needs while providing protection for the terminals in a small package.

Micro-Fit Connectors

  • Can withstand operating temperatures up to 125°C, is available in multiple circuit sizes and cable lengths for power applications and board-to-board, wire-to-board and wire-to-wire configurations.

Micro-Fit+ Connectors

  • Micro-Fit+ Connectors are uniquely designed to meet the demands of power applications that require a compact, high-density solution without compromising performance or reliability. Learn more.

Ultra-Fit Connectors

  • Ultra-Fit Power Connectors deliver color-coding and keying options that eliminate same-circuit-size mis-mating, and offer the tangless feature that allows the terminal locking mechanism to be incorporated into the receptacle housing.

Mini-Fit Connectors

  • Offers premium housing features to prevent mis-mating, reduce terminal backout, reduce operator fatigue during assembly and aid in blind-mating applications.

Mega-Fit Connectors

  • Deliver up to 30.0A per circuit through fully protected header pins and receptacle terminals, while offering unique keying options to ensure proper mating during termination.

MLX Connectors

  • 6.35mm pitch, 2.13mm diameter pin and socket power connector system. Also includes MLX Ground Block System to centralize electrical ground wiring.

Sabre Connectors

  • High-Current Wire-To-Wire and Wire-To-Board Connector Family with a TPA feature that helps to prevent terminal backout in high-vibration applications.

Super Sabre Connectors

  • Delivering 30.0A per blade and withstanding up to +125°C operating temperatures, Super Sabre Power Connectors use proven technology for long-term performance and reliability in virtually every industry.

Mini-Fit Sr. Connectors

  • The Mini-Fit Sr. Power Connector Family offers robust and flexible interconnect solutions, with high-current ratings suitable for power applications up to 50.0A and various configurations for versatile use in multiple industries. These connectors are designed for high-density, high-current wire-to-wire and wire-to-board applications with TPA and polarization, providing reliable connections while maintaining ease of assembly.
Sealed / Rugged

Compactus Connectors

  • Compactus Sealed Hybrid Connectors are robust, high-density, automotive-grade connectors that permit manufacturers to fit more power and signal transmission ability into a small space.

CMC / CMX Connectors

  • When there’s a market need for more controllers, the CMC/CMX product family of hybrid, high-density, sealed connectors deliver high performance for harsh environments – and supports the transition to EVs and next-generation vehicle architectures.

MX150 Connectors

  • Proven MX150 Connectors offer a sealed automotive connector system supporting compact automotive and commercial vehicle applications.

MX123 Connectors

  • Designed for transportation power-train applications requiring reliable connections in high-vibration under-the-hood environments, the MX123 Sealed Connection System offers a rugged, fully-sealed interface with the smallest packaging size in the industry

MX120G Connectors

  • Molex’s sealed MX120G connectors offer greater cost and space savings while providing superior design and mating features to meet the needs of environmentally challenging automotive and non-automotive applications

DuraClik Connectors

  • Molex’s expanded line of DuraClik connectors with terminal retainer options provides superior electrical contact reliability, mating retention and space savings compared to competitive versions for high-vibration and high-temperature applications

MX150L Connectors

  • Designed for commercial-vehicle, marine and other harsh environments, the pre-assembled MX150L Industrial Sealed Connector System exceeds IEC IP67 requirements while providing economic advantages.
